    The CloverDX Server offering on Azure Marketplace provides an easy way to create a CloverDX Server instance in the Azure cloud infrastructure. The offering spins up a recommended cloud architecture that contains a standalone CloverDX Server with good defaults and a recommended environment. The server uses Azure Database for PostgreSQL as its system database, which is automatically created and configured. The server instance uses Azure resources of the user, who is charged for them by Azure.

    The CloverDX Server Azure offering contains an ARM (Azure Resource Manager) template that deploys a virtual machine and other necessary resources. The ARM template is configured by a user interface with simple configuration options. All the resources are deployed to a single Resource Group chosen by the user.

    The following software plans are provided:

    Template Description

    CloverDX Server <version> BYOL - New

    Deploys a new instance of CloverDX Server, see Quickstart.

    CloverDX Server <version> BYOL - Upgrade

    Upgrades a CloverDX instance to a new version of CloverDX Server, see Upgrade in Azure.
    Quickstart

    Prerequisites:

    High-level overview of steps:

    1. Deploy CloverDX Server on Azure Marketplace.

    2. Activate and configure the server instance.

    Steps

    1. Navigate to the CloverDX Server BYOL offering on the Azure Marketplace and use the GET IT NOW button on the offering’s marketplace page. Accept the Terms and Conditions and proceed with the Continue button.

    2. You were redirected to the CloverDX Server BYOL offering inside the Azure Portal. To proceed, click the Create button. This will launch the wizard where you can configure the server deployment.

      marketplace azure wizard
      Figure 22. Azure Marketplace Configuration Wizard
    Parameter Description

    Basics page

    Subscription

    The top-level Azure subscription used for billing.

    Resource group

    We recommend deploying to an empty resource group which won’t be shared with other deployments. Managing resources is easier when multiple deployments do not share resource groups.

    Region

    The location where all resources are going to be deployed. Our offering is designed to work in all regions.

    Resource prefix

    Names of all resources created by our offering will start with this prefix. This makes identifying resources easier.

    Virtual Machine Settings page

    Virtual machine size

    The VM instance size. Default size is pre-selected, and you can pick from 5 different sizes that we support. If you want to change the size and can’t see any other sizes in the selector, make sure to disable filters. Larger instances have better performance but higher cost.

    Admin user name

    The OS admin account name of the virtual machine.

    Authentication type

    You can choose between Password and SSH Public Key authentication for the admin user.

    Password / Confirm password

    If you selected the Password option above, enter and confirm the password for the VM admin user.

    SSH public key source

    If you selected the SSH Public Key authentication option, select the source of your public key (Generate new key pair, Use existing key stored in Azure, or Use existing public key)

    SSH Key Type

    If you selected the SSH Public Key authentication option, select the desired key type.

    Key pair name

    If you selected the SSH Public Key authentication option, enter the name for the key pair.

    Network Settings page

    Public IP address

    Pre-defined public IP resource. You don’t need to change this, the defaults work well for all deployments.

    Hostname prefix

    The server will be available on an Azure hostname, and this is the prefix for that hostname. The hostname must be globally unique, which is immediately validated. If there’s a green validation check, the hostname is not taken.

    Virtual network

    Whether to create new or reuse an existing virtual network. When selecting an existing network, you can only select networks that are in the location you are deploying to. See Deployment into existing infrastructure for more information.

    Allow connections from

    This option is available only when creating a new virtual network. The ARM template creates a Network Security Group automatically which allows only connections from specific IP ranges to specific ports on the instance.

    We recommend that you provide a range of IP addresses from which the instance should be available - typically your offices or data centers. For evaluation purposes you can use your public IP, obtained e.g., from myip.com.

    We do not recommend making the instance visible to the whole internet.

    CloverDX Settings page

    CloverDX admin user name

    The user name of the CloverDX Server administration user (or keep the default clover). This user is the first user available in the Server Console, for administration of the server itself. This is NOT the operating system user - you have already configured that on the Virtual Machine Settings page.

    CloverDX admin user password

    Specify the password for the above admin user.

    Confirm password

    Re-type the above password to confirm it.

    Database admin user name

    Specify the admin user name of Azure Database for PostgreSQL that will be created as the server’s system database. This user name and below password will be used by CloverDX Server to connect to the database.

    Database admin user password

    Specify the password for the above database admin user.

    Confirm password

    Re-type the above password to confirm it.

    Review + create page

    On this page, all the configuration is validated and summarized. If there are no problems, you can proceed by clicking on the Create button.If any problems are found, you will see a red error with a description. The error description might not be descriptive enough to see what the problem really is. In that case, open up the Web Console of your browser (F12 key) and see if the error messages logged there contain more information.

    1. The deployment will start. You will be redirected to the page in the Azure Portal where you can see the deployment progress. This process will take several minutes.

    marketplace azure deployment
    Figure 23. Azure Portal - Deployment in progress

    Success. CloverDX Server is now available in Azure. You can find its URL in the Outputs tab of the Deployment - the serverHttpsUrl entry.

    marketplace azure deployment outputs
    Figure 24. Azure Portal - Deployment outputs

    On the Server’s URL, you will see the login page where you can:

    • Activate the Server - the Server is licensed in BYOL (Bring Your Own License) mode. Load a compatible Server license - if you have an existing Server license, you can download it from our Customer Portal. If you do not have a license, reach out to your Account Manager.

    • To log in, use the credentials set in the configuration wizard.

      marketplace login page
      Figure 25. CloverDX Server login page

    The Server is running with default settings and is immediately usable. It can be configured further to get it into full production quality.

    Deployment into existing infrastructure

    If you are already operating services and instances in Azure and want to deploy CloverDX Server alongside them, e.g., to integrate several data sources or services, then you can use the option to reuse some of your network resources. Instead of creating a new Virtual Network and Network Security Group, you can choose an existing virtual network and connect the newly deployed CloverDX Server to it. The templates do not support reusing other resources than the virtual network.

    Deployment steps and settings in this case are the same as described in Quickstart, with one difference:

    • On the Network Settings page, select option Select existing or customize for Virtual network. Using the additional controls, choose an existing virtual network you want to use. You will only be able to choose virtual networks in the same location as you chose at the start of the wizard. Subnets from the selected virtual network must be selected as well. The subnets require specific configuration to be usable; follow the instructions presented by the wizard.

      marketplace azure existing infrastructure network
      Figure 26. Azure - selecting an existing virtual network
    Architecture

    The CloverDX Server Azure offering consists of a virtual machine image and an ARM template that orchestrates the required cloud resources:

    marketplace azure architecture
    Figure 27. Architecture - CloverDX Server in the Azure marketplace

    Details of the Azure topology:

    • The Virtual Machine (VM) runs in the Azure cloud, in the Region selected by the user.

    • A new Virtual Network (VNET) is created to isolate the CloverDX instance from other resources present outside (on Azure Cloud or on the Internet).

    • The Virtual Network uses a Network Security Group (NSG) to limit access only to specific ports (22, 80, 443) and only from IP addresses from a defined IP range.

    • The Virtual Network contains a subnet for the VM and a second subnet delegated to Azure’s PostgreSQL service.

    • A new Azure Database for PostgreSQL is created in the delegated subnet to be used as the server’s system database.

    • Private DNS zone is linked to both the VNET and the Database, so the DB is accessible by all services inside the VNET.

    • The Virtual Machine is assigned a Network Interface Controller (NIC) to allow network communication.

    • The Virtual Machine is assigned a Public IP Address with a configured DNS label. The IP address is static and the DNS label is always the same, so the server is always available on the same hostname.

    • The CloverDX Server is running on the Virtual Machine and connects to the PostgreSQL database.

    Virtual machine details

    For additional information, see Common cloud architecture.

    Virtual machine details

    Operating system

    Ubuntu 24.04 LTS

    Java

    Eclipse Temurin JDK 17 (formerly AdoptOpenJDK)

    Application server

    Tomcat 10.1

    Disks

    OS disk (30GB) and data disk (128GB). Both are Premium SSD type. It is possible to increase the size of the disks (which also affects the provisioned IOPS), just follow the steps in Microsoft’s documentation.
    Azure Database for PostgreSQL details
    Virtual machine details

    Database type

    PostgreSQL 15

    Pricing tier

    General purpose, 2 vCores, 8GB RAM

    Storage

    64GB allocated storage

    Backup

    Automatic daily backups enabled. Backups retained for 7 days.

    Accessibility

    Available only from the server’s VM instance, not visible from the Internet.

    CloverDX Server-database communication

    Server uses SSL to communicate with the database.
    Configuration

    For details about CloverDX Server configuration, see Common cloud configuration.

    Memory

    Heap sizes for Server Core and Worker are set automatically based on the instance memory size, see Common cloud memory configuration. It is possible to change the size of the VM, and the memory sizes will be recalculated - for this, stop the VM instance in the Azure Portal, change its size, and start it again.

    Server logs

    By default, server logs are collected in /var/clover/cloverlogs directory, and Tomcat logs in /var/clover/tomcatlogs. It is possible to enable integration with the Azure Monitor service, in which case the logs can also be sent to a Log Analytics workspace, where they can be saved and queried. This lets you view the logs directly in the Azure Portal, where they are kept for 30 days by default.

    How to send logs to Azure Monitor

    The integration with the Azure Monitor service is not enabled by default. To start sending server logs to the Log Analytics workspace, follow these steps:

    1. Azure Monitor doesn’t support circular log rolling. All.log, performance.log, and worker.log files are by default configured to roll over to a new file every day or when the 20 MB limit has been reached, so these log types can be monitored without further configuration changes. See Default logging logic for more information.

      If you want to monitor also other log types, you will need to reconfigure them to roll daily. See Logging customization for more information.

    2. Create a Data collection endpoint in the Azure Portal.

    3. Create a Log Analytics workspace in the Azure Portal.

    4. Next, you will need to create a log table that will hold logs collected from the VM. Go to the Log Analytics workspace created in the previous step and follow the Azure Documentation to create a new DCR-based custom log. Make sure to:

      1. Create a new Data Collection Rule (DCR) as described in the article.

      2. When prompted for a Data collection endpoint, select the one created in step 2.

      3. When you’re asked to upload a sample of the log file, upload a file containing the following mock data:

        {
  "TimeGenerated": "2025-01-01T11:00:00.000Z",
  "RawData": "data"
}

    5. Go to the Data Collection rule (DCR) you created in the previous step and create a new Data Source. Choose Custom Text Logs from the Data source type dropdown.:

      marketplace azure DCR add data source

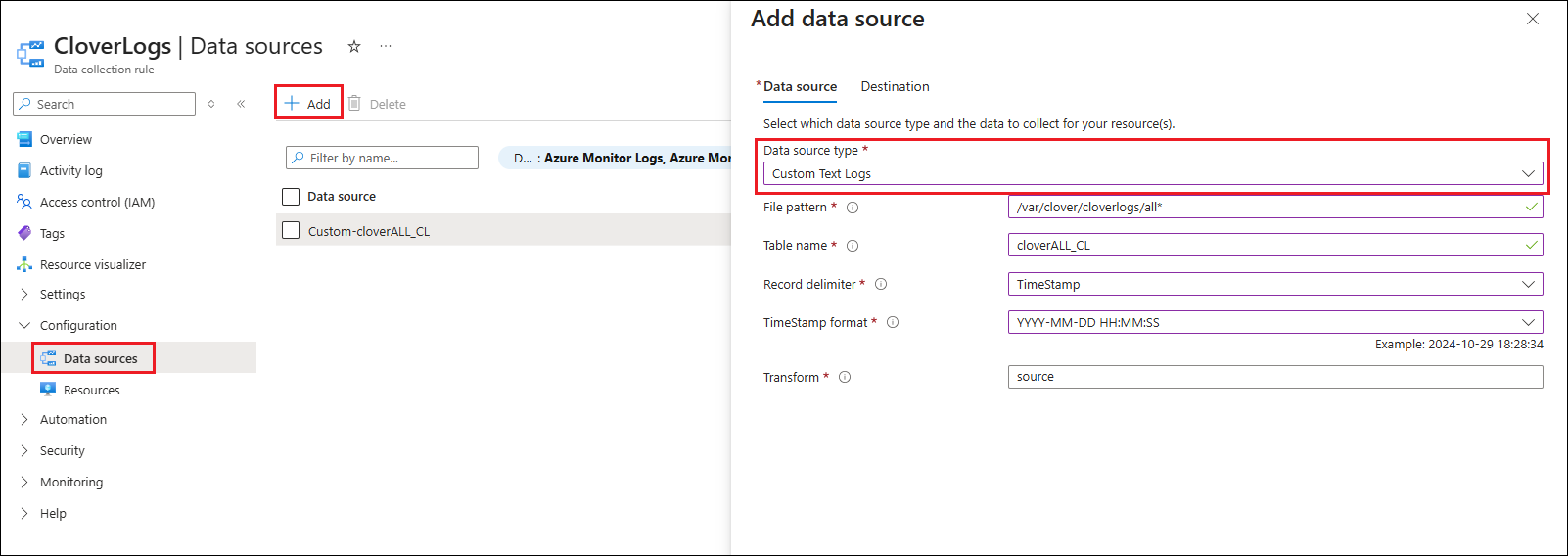

      Figure 28. Adding a data source to the Data collection rule

      The most important server log file is the all log. To collect the main log, we recommend the following setup:

      • File pattern: /var/clover/cloverlogs/all*

      • Table name: the name of the log table created in step 4, including the mandatory suffix _CL

      • Record delimiter: TimeStamp

      • TimeStamp format: YYYY-MM-DD HH:MM:SS

      • Transform: source

      Another useful log to collect is the performance log. For the performance log, we recommend the following setup:

      • File pattern: /var/clover/cloverlogs/performance*

      • Table name: the name of the log table created in step 4, including the mandatory suffix _CL

      • Record delimiter: End-of-Line

      • Transform: source | extend TimeGenerated = now()

      On the Destination tab, add the Log Analytics workspace created in step 3.

    6. After you save the above configuration, go to Resources (located right under the Data Sources in the menu) and add the VM running CloverDX Server. This will automatically install an extension on the VM, which might take several minutes. Wait until the process finishes.

    7. If you want to monitor multiple log files, repeat steps 4 to 6 for every one of them.

    8. It might take several hours before the collected log content will be available to view in the Azure Portal. After that, you can view and query the collected logs in the Log Analytics workspace. To start exploring the logs, follow the Log Analytics tutorial.

    Users

    Users available in the virtual machine:

    Parameter Description

    <admin user>

    The user configured in the wizard before deployment. Use sudo to run commands that require root privileges. Log in via SSH using either password or public key defined in the configuration wizard.

    root

    Not recommended to be used, cannot log in to it directly.

    clover

    User that runs the CloverDX Server (i.e., it runs Tomcat). All files that CloverDX uses are owned by the clover user. It is not possible to log in as clover.
    Security

    This section describes security-related aspects of the CloverDX Marketplace offering.

    Network Security Group

    The ARM template creates a network security group that serves as a virtual firewall. The security group allows connections to the following ports:

    Port Description

    22

    SSH

    80

    HTTP for Server Console and Server API

    443

    HTTPS for Server Console and Server API

    The connections are allowed only from the IP range specified in the wizard when configuring the deployment.

    The security group settings can be modified - you can find the security group in the Resource Group where the server was deployed.

    HTTPS

    The CloverDX Server has both HTTP and HTTPS enabled by default. You can find the server’s HTTPS URL in the Outputs section of the Deployment under the serverHttpsUrl key. The HTTPS connector is running on port 443.

    Let’s Encrypt Certificate

    The default HTTPS connector is using a certificate issued by Let’s Encrypt. It is useful for encryption of communication between the client (e.g., Designer) and the Server, and for server identity verification. The certificate is free, but it’s valid only for 90 days because Let’s Encrypt does not support longer validity.

    When the certificate expiry time is less than 30 days, the server deployed in Azure will automatically attempt a renewal every time it is started. The renewal process requires external access from Let’s Encrypt servers, which is blocked by default by the Network Security Group. To renew the certificate, you must first allow external network access, then restart the virtual machine, and then block external network access again.

    The full process to renew the certificate is:

    1. Locate and open the Network Security Group of the server. It’s in the same Resource Group where the server is deployed, next to all the other resources.

      marketplace azure resources
      Figure 29. Azure resources - network security group

    2. Add a new Inbound security rule to allow access from Let’s Encrypt servers. Set the following properties:

      • Source - Any

      • Source port ranges - *

      • Destination - Any

      • Destination port ranges - 80

      • Protocol - Any

      • Action - Allow

    3. Find the Virtual Machine resource and restart it. During its startup, the server automatically attempts a certificate renewal if the expiry time is 30 days or less.

    4. Access the Server Console on HTTPS in your browser and verify that the certificate has been renewed. You can check it by inspecting the lock icon next to the address box of the browser and checking the certificate validity. Your certificate should be valid for the next 90 days.

    5. Remove the Inbound security rule you added in step 2. It is no longer necessary.

    Using your own certificate

    In case you do not want to use the default Let’s Encrypt certificate for any reason, you can use your own production-quality certificate for the HTTPS connector and for JMX monitoring:

    1. Create /var/clover/conf/customCertificate.jks keystore with your own server certificate. Do not use or modify the already existing file serverCertificate.jks - it is used and overwritten by automation scripts.

    2. Modify the /opt/clover/tomcat/conf/server.xml Tomcat configuration file to use your customCertificate.jks file instead of serverCertificate.jks.

    3. Modify files jmx-conf-core.properties and jmx-conf-worker.properties in the directory /var/clover/conf/ to use your customCertificate.jks file instead of serverCertificate.jks.

    To disable usage of plain HTTP connectivity, modify the network security group to block all connections to port 80.
