8. Designer configuration

CloverDX Designer offers many configuration options that allow you to configure wide range of settings – fonts, window layouts, colors, editor preferences and much more. In this chapter, we will focus only on settings that are specific to CloverDX platform. For information about other settings offered by CloverDX Designer, please consult Eclipse documentation that is available directly in the Designer via the question mark button in the bottom left corner of the dialog.

General configuration

All CloverDX settings are grouped together in one node of the settings tree accessible via menu Window Preferences:

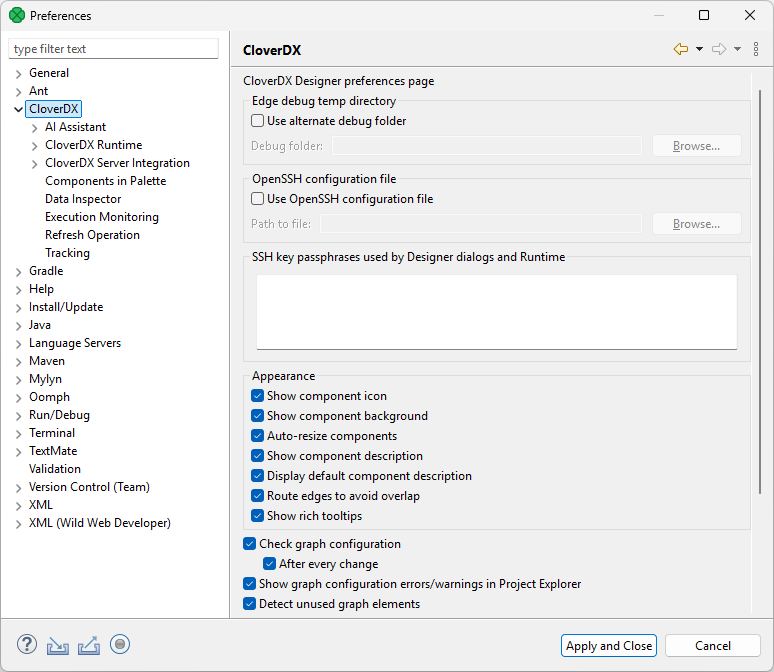

Figure 62. CloverDX-specific configuration in CloverDX Designer.

Table 13. General configuration
Option	Description	Default value
Edge debug temp directory
Use alternate debug folder	Allows you to specify the path to an alternate folder containing edge debug files (`.dbg`).	disabled
OpenSSH configuration file
Use OpenSSH configuration file	Specifies the location of the OpenSSH configuration file which allows you to define SSH access outside of CloverDX Designer. The path to the file is `~/path/to/.ssh/ssh_config` There is no default file; therefore, without proper specification, no configuration file is loaded. Enabling/disabling this option requires restart of the CloverDX Designer runtime to take effect.	disabled
SSH key passphrases	Specifies list of passphrases for SSH keys used in Designer dialogs and jobs executed in Runtime environment. Each line represents one passphrase used by a specific SSH key. The line content should be `[key identity]=[passphrase]`. The key identity can be `[username]@[hostname]` or just `[hostname]`. For example `john@my-sftp-server.com=changeit`. If the key is stored in project’s `ssh-keys` directory the identity must match the name of the file without the `.key` suffix. If OpenSSH configuration file is used the identity must match the information stored in the configuration. In this case, the `[username]` is optional.
Appearance
Show component icon	Switches component icons on or off.	enabled
Show component background	Enables or disables the background color of components.	enabled
Auto-resize components	Automatically adjusts components' size to fit their name.	enabled
Show component description	Displays or hides components' description in a graph. If Display default component description is disabled, only user-defined description is visible.	enabled
Display default component description	When Show component description is enabled, it shows the components' default description (e.g. path to the file in Readers or Writers).	enabled
Route edges to avoid overlap	Enables or disables different edge-routing algorithm.	enabled
Show rich tooltips	Enables or disables detailed tooltips on edges.	enabled
Other
Check graph configuration	Enables or disables graph configuration validation. When this validation is disabled, error icons on components are not shown.	enabled
After every change	Configure when the graph validation is performed. If this is disabled, validation is only done after save. When enabled, validation is done when changes are made.	enabled
Show graph configuration errors/warnings in Project Explorer	Allows to suppress detected configuration errors and warnings in Project Explorer and Problems views.	enabled
Detect unused graph elements	Enables or disables updates and reporting of used/unused graph elements. Disabling can solve some specific performance issues.	enabled
Validate classpath	Checks whether the content of the classpath file is valid for both Designer and Server. Can be disabled in case it significantly slows down the working process (opening new projects, etc.) or indicates false positives.	enabled
Generate component ID from its name	Generates component identifier based on its name by converting to uppercase and replacing special characters with underscores.	enabled
Open context menu for newly created edge	Opens the context menu after creating an edge between two components. In the menu, you can select metadata for the edge.	disabled
Switch to preferred perspective on graph editor activation
Three options	Configure whether to automatically change perspective on graph editor activation. Three options are available: Always: always switch automatically Never: never switch automatically Prompt: ask and allow user to decide (and save the decision for later)	Prompt

CloverDX AI Assistant configuration

The AI Assistant pages allow you configure Clover Assistant. The most important part is the API key for 3rd party LLM (Large Language Model) such as GPT or Claude which power Clover Assistant. Additional options allow you to configure agent behavior, logging and more.

CloverDX AI Assistant is released as a technology preview in CloverDX 7.5.0. It is present in Designer but remains inert until you apply an Assistant license key and configure an AI provider in Designer preferences (it will not do anything on its own).

As a technology preview, it is under active development. Its behavior, interfaces, and defaults may change in future releases, sometimes in incompatible ways. Use it in dev/test environments only, not in production. Treat it as a tool for evaluation and non-critical work, and review everything it produces before relying on it. Use it with caution: the Assistant can read and modify files and run jobs in the CloverDX Server project you connect it to.

Gathering feedback on how teams want to govern the Assistant is one of the goals of this technology preview. Contact your Account representative if you wish to provide feedback that could help us improve future versions of the Assistant.

General options

On this page, you can configure which models are used for different agents. See Agent types for more details about different kinds of agents, their requirements and usage patterns.

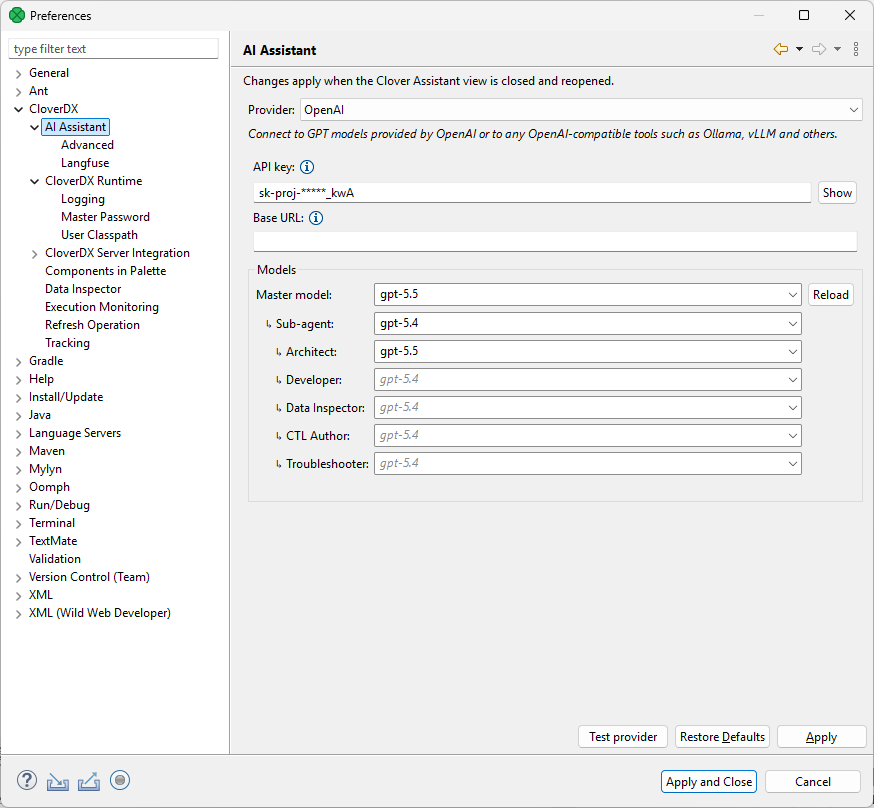

Figure 63. General settings for Clover Assistant.

Following options are available:

Provider: Allows you to select which provider to use. This is required and must be configured before the Assistant can be used. Multiple providers are allowed each with their own settings.

In general, you will need an API key for the selected provider, and you may also need additional information such as endpoint URLs etc. Follow the tooltips for each provider configuration option once you’ve selected you provider to get more information about what each option means.
Models: Allows you to select models you wish to use for each agent. Pressing the Reload button will connect to the provider you selected above and will download the list of models you have currently available. You can then select different models for each agent type. See Agent types for more details about agents.

The configuration allows you to configure one Master model which will serve as default for all sub-agents unless you override them for each specific agent.

In general, we recommend largest ("frontier") models for Architect, and medium-size models or models from previous generation for other sub-agents.

Advanced configuration

Advanced configuration allows you to configure additional settings that tune the behavior of Assistant, its token consumption, logging details or even zoom level for Assistant view.

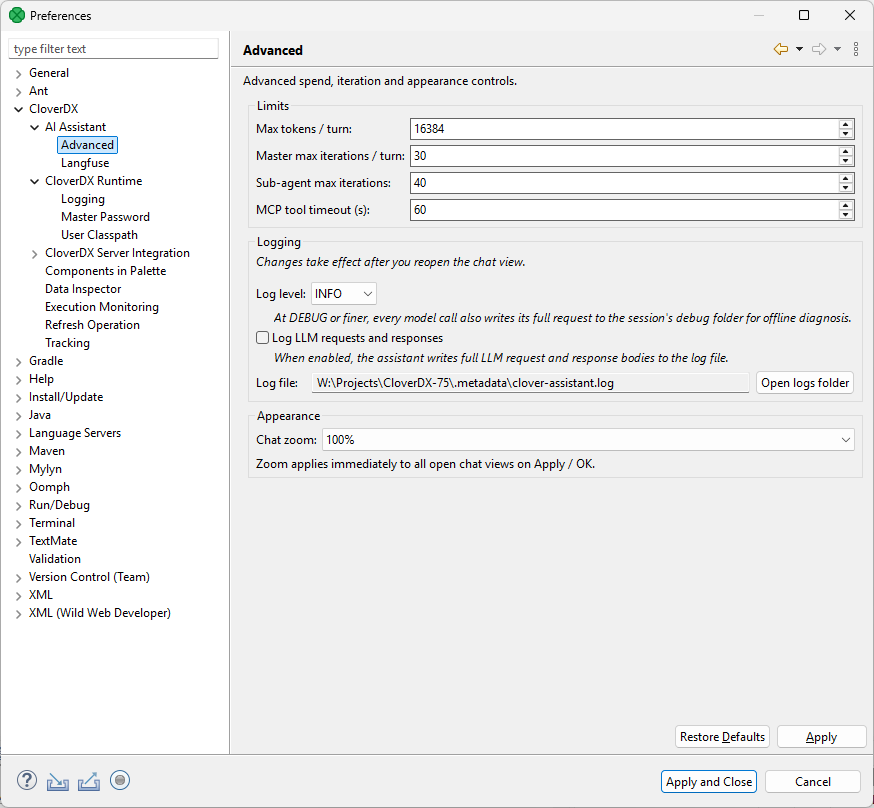

Figure 64. Advanced configuration of Clover Assistant.

The configuration uses few basic terms:

Turn: One user message and the Assistant’s complete response to it. A turn may involve many model calls and tool calls.
Iteration: A single round-trip to the model. One iteration may carry several tool calls which are executed before the next iteration.
Master: The main assistant agent that talks to you. It may delegate work to sub-agents (specialists such as the Architect, Developer, Data inspector, etc.).

Limits

The Limits section allows you to influence token consumption and iteration counts for your agents. These guard against runaway tool call loops and oversized model responses. The default suit regular usage, change these values only if you are hitting the limits or if you need tighter control over your Assistant costs.

Max tokens / turn: Configure the maximum number of tokens the model may generate in a single reply. This limits the length of each model response within a turn, not the turn’s total token count. Raise this limit if answers are being cut off in the middle of the output; lower this value to reduce per-reply cost. The value range is from 256 to 64000.
Master max iterations / turn: Configure the maximum number of model round trips the Master may make while answering one message. If the Master reaches this ceiling without producing a final answer, the turn stops with an iteration limit error – usually a sign of a confused tool call loop. Raise this only for genuinely long, multi-step tasks. You can use values from 5 to 200.
Sub-agent max iterations: Configure the number of model round trips sub-agentsmay makewhileanswering the queries they are given. If a sub-agent reaches this limit without finishing, it will return an error to Master. Master can then decide whether to call the task with narrower scope or to try another approach. Value range is 5 to 200.
MCP tool timeout (s): Configure how long to wait for MCP Server’s response in seconds. If MCP does not respond before the timeout expires, the call is considered a failure, and the agent will then decide how to continue (whether to end the turn, call the tool again, or switch to a different tool). Increase this value if legitimate calls to long-running tools time out (e.g., on overloaded Server). Decrease the value to fail faster if the Server is stuck. Values can range from 10 seconds to 600 seconds.

Logging

The Logging section allows you to configure the amount and location of logs produced by agents when they run.

Log level: Configure which log messages are written to the log. Note that on DEBUG and TRACE levels, full requests and responses may be written to logs which can significantly increase the log size. Default level is INFO and should be suitable for most common situations.
Log LLM requests and responses: Allows you to force agents to always write full requests and responses to log files. By default, this is disabled.
Log file: Configure the location of the Assistant log file. By default, this will be a file within .metadata folder of your current workspace.

Appearance

The Appearance section allows you to configure the appearance of the Clover Assistant panel.

Chat zoom: Configure the zoom level of the chat panel. This is useful especially if you are using high-DPI screen and wish to present your work to others to allow them to read even on regular screen sizes. Default value is 100%, larger values make the text bigger, smaller values make the text smaller.

Runtime Configuration

CloverDX Runtime is the execution core which runs jobs (graphs, jobflows, …) which are part of local projects in CloverDX Designer (as opposed to jobs that are part of Server projects and which run on the Server even when started from the Designer).

Current status of the Runtime can be seen in the bottom right corner of the Designer.

Clicking on the little arrow next to the Runtime icon will bring up a context menu which will allow you to control the Runtime (start, restart, …) or view its logs.

Runtime settings can be found in Window Preferences menu under CloverDX CloverDX Runtime node in the configuration tree.

When changing Runtime settings, Runtime will need to be restarted for the settings to take effect. This will be done automatically for you once you save the configuration and confirm the restart.

Basic settings

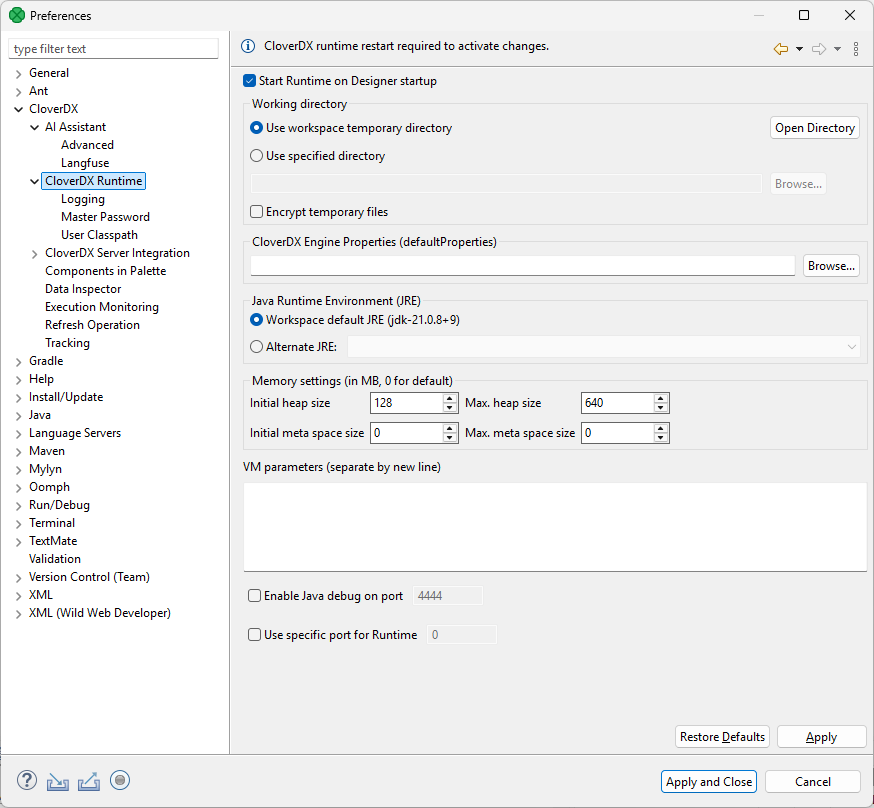

Figure 65. Basic settings for CloverDX Runtime.

Start Runtime on Designer startup: when checked, Runtime will automatically start when you run CloverDX Designer. This is recommended to ensure that you can use all features of the Designer since some of the functionality depends on the Runtime being available (running any job, metadata propagation, and more).
Working directory allows you to change where temporary files are stored when jobs run in the Runtime. By default, this is set to a directory within the workspace and this is the recommended setting. You can also select your own directory if needed via Use specified directory option.
- You can also encrypt your temporary files if needed via Encrypt temporary files option. This is disabled by default since file encryption can lower performance of your jobs.
CloverDX Engine Properties (defaultProperties) allows you to configure additional properties that the Engine (a library within Runtime responsible for actually running jobs) will use. These settings are quite low-level and very seldom need to be changed. To learn more about which settings are available here, see Engine configuration.
Java Runtime Environment (JRE) allows you to select which Java Runtime Envinronment to use when running CloverDX jobs. Default is to use value as configured in the workspace (which in turn defaults to JDK bundled with the Designer). This should not be changed unless you rely on specific version of Java for various reasons. In general, jobs may not run correctly on JDK other than the one supported by CloverDX Server (see compatibility matrix). See Java Configuration for more information about Java in Designer.
Memory settings: allows you to configure how much memory the Runtime can use. In general, more memory means faster job processing and more stable environment. More complex jobs and large data sets require more memory to run with reasonable performance and may not run at all if there is not enough memory.
- If you are working with Server projects, Runtime will not require too much memory since all data processing happens on the Server. In that case, default values should be enough even if you are working with complex data flows or large volumes of data. In those cases, you will have to make sure that your Server has enough memory provisioned for its Worker process.
- Initial heap size and Max. heap size allow you to configure how much memory the Runtime will use. The default settings should be sufficient in most cases. To allow the Runtime to use more memory, simply increase the Max. heap size.
- The Initial meta space size and Max. meta space size allow you to configure the size of Java Meta Space – a native memory space Java uses to keep metadata about classes that are loaded. You should not modify this setting – the default values should be good.
VM parameters allows you to send additional command-line arguments to Java VM which runs the runtime. Each parameter goes on new line.
- Most commonly this is used to add additional libraries to Java classpath. A library can be added by specifying full path to where it is located via -D parameter by adding a line like -Djava.library.path=path/to/library to VM arguments. The path can be a path to jar file or to a folder with jar files.
- Note that if you just need to use Java library within a project, simply place it into the lib directory within that project instead of Runtime classpath.
Enable Java debug on port allows you to enable or disable Java debugging for jobs running in Runtime and to configure on which port the debugger will be available.
Use specific port for Runtime allows you select which port to use for CloverDX Runtime when it communicates with the Designer. By default, a random port will be selected. This may cause issues with strict security in some environments. In such cases, you can manually configure which port the Runtime will use. This should not be changed unless you have issues with the Designer not being able to connect to the Runtime.

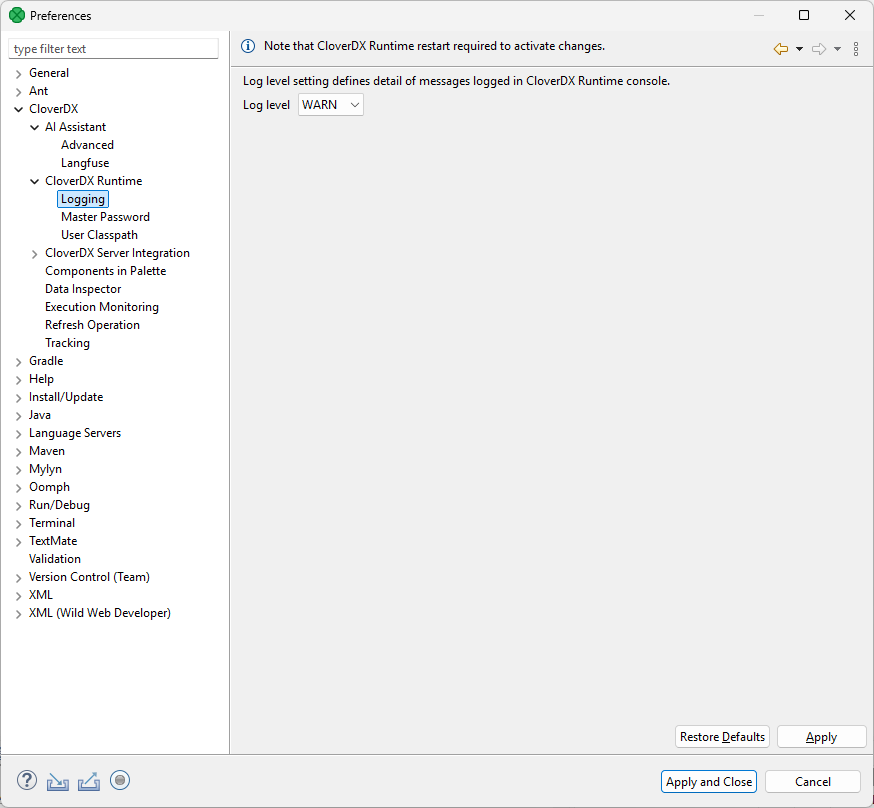

Logging

CloverDX Runtime writes its logs into Console tab. This screen allows you to configure the severity of the log messages that will be shown.

Figure 66. CloverDX Runtime – Logging settings.

Master Password

Master Password serves for encryption and decryption of Secure graph parameters.

You need to set up the Master Password to be able to use the Secure parameters in CloverDX Designer.

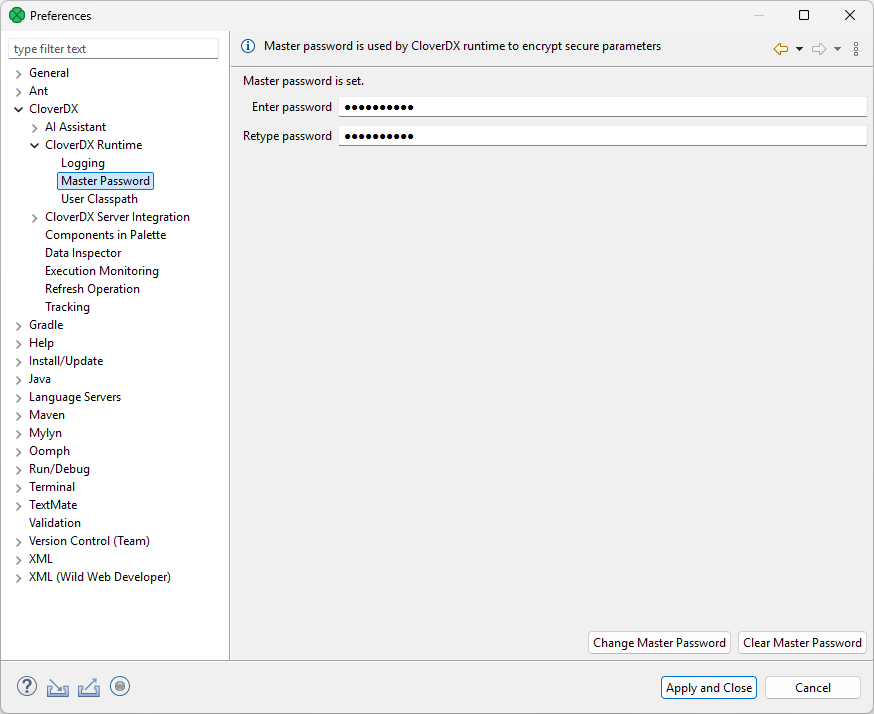

Figure 67. Setting the Master password.

Note that jobs running in Server project will use Master password configured on the Server and not the one configured in the Designer’s Runtime.

User Classpath

You can add your own libraries to the CloverDX Runtime classpath. Usually, you do not need to add any libraries here.

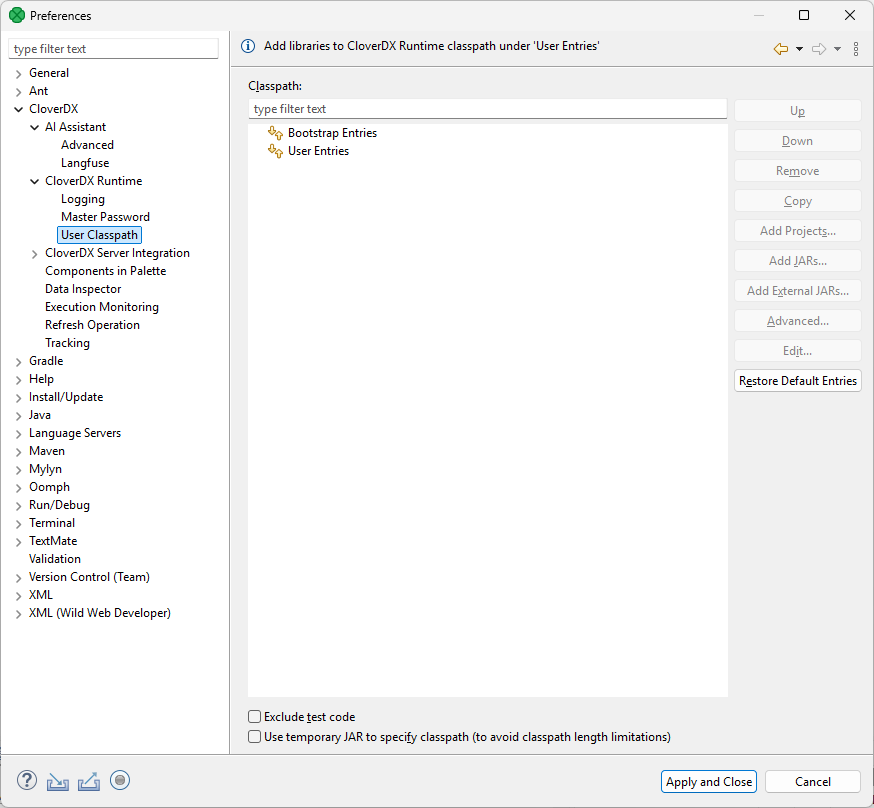

Figure 68. CloverDX Runtime - User Classpath

CloverDX Server integration

Preferences of CloverDX Server Integration allow you to tweak communication between Designer and Server.

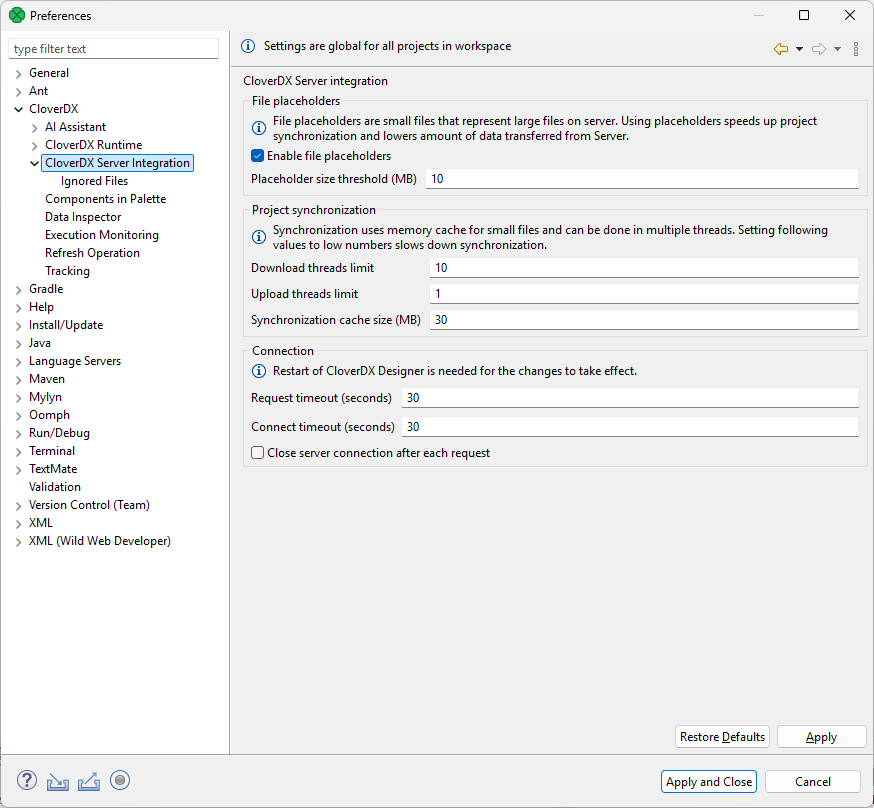

Figure 69. CloverDX Server Integration

Table 14. General configuration
Option	Description	Default Value
Enable File Placeholders	Enables usage of placeholder files. A placeholder file serves to save your disk space and to speed up synchronization in server projects. Files in sandbox with a size above the specified limit are replaced with placeholder files (in Designer) – one placeholder for each large file in the sandbox. Usually, you do not need to see the content of these files and you do not commit them into repository. See CloverDX Server project.	enabled
Placeholder Size Threshold	Files above this threshold are replaced with placeholder files. The size is in MB.	10
Download threads limit	The maximum number of threads used for downloading files from CloverDX Server. Using more threads can speed up synchronization in networks with high latency but can also decrease CloverDX Server performance.	10
Upload threads limit	The maximum number of threads used for uploading files to CloverDX Designer and CloverDX Server.	1
Synchronization Cache Size	While downloading files from CloverDX Server during synchronization, the content of files is cached in memory to improve the performance. This parameter sets the cache size.	30
Request Timeout	A request timeout of connection to CloverDX Server. The request timeout is in seconds.	30
Connect Timeout	Timeout of the connection to CloverDX Server. The timeout is in seconds.	30
Close server connection after each request	Enables closing the connection to the server after each request. Used for performance tuning.	false

Restart CloverDX Designer to use new timeout values.

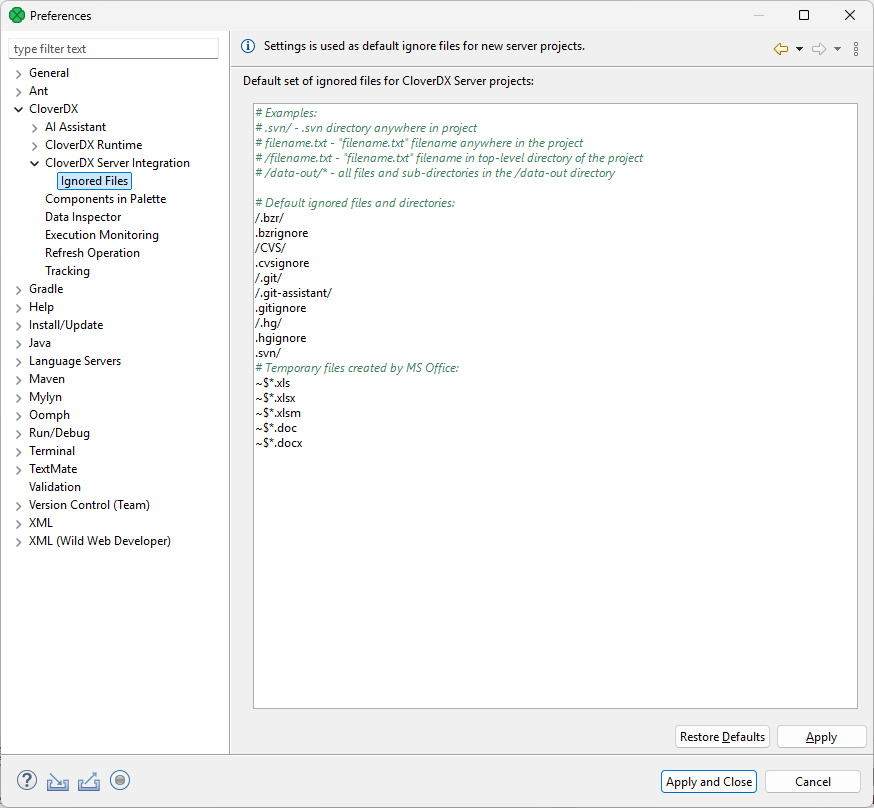

Ignored files

The Ignored files setting allows you to avoid synchronization of particular files. This is often used to prevent synchronization of various temporary files, version control files, system metadata and so on. By default, we exclude metadata files and directories of the most common ones: Bazaar, CVS, Git, Mercurial, Subversion. If you use any other version control system, add its metadata files to the list.

The configuration has the same syntax as the .gitignore file.

This is a global (workspace-scope) configuration template. When a new project is created, this content is copied into the new project configuration. Therefore, any change of this configuration does not change configuration of any existing project.

See also Ignored files in project configuration.

configuration server integration ignored files

Figure 70. CloverDX Server Integration

Execution monitoring

Execution Monitoring lets you set up status and log update intervals. Monitoring intervals do not affect runtime of jobs, just the frequency at which logs and status information are refreshed in the Designer.

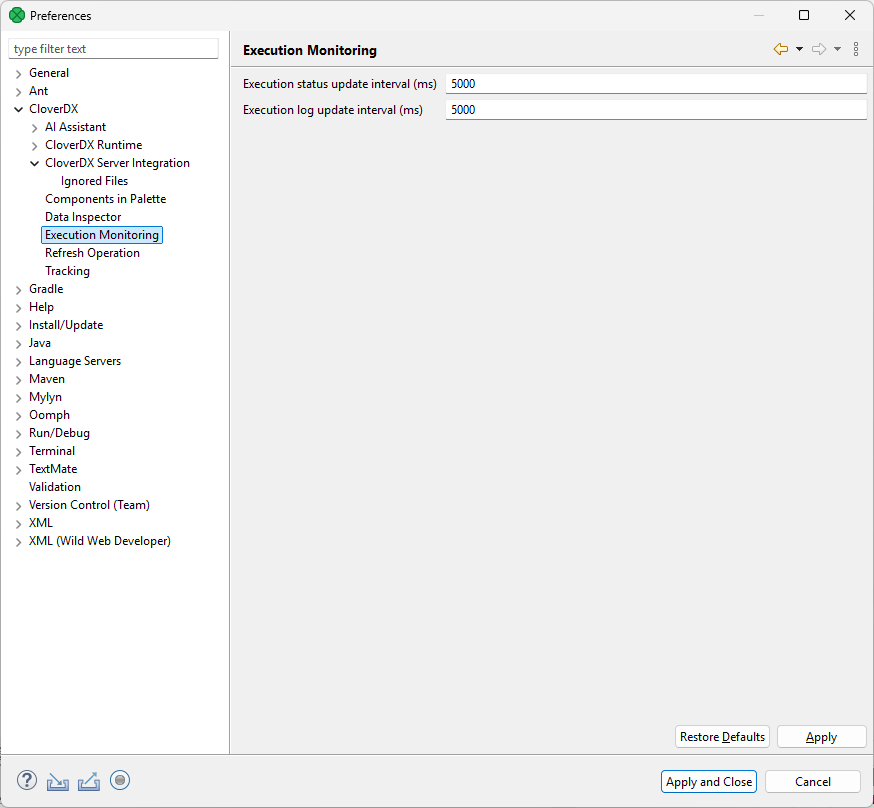

Figure 71. Execution Monitoring

Refreshing the data-out folder is described in Refresh operation.

Refresh operation

Refresh Operation lets you configure which resources should be refreshed after graph run on a per project basis.

The refresh operation configuration is accessible from the main menu under Window Preferences. Choose CloverDX Refresh Operation in Preferences window.

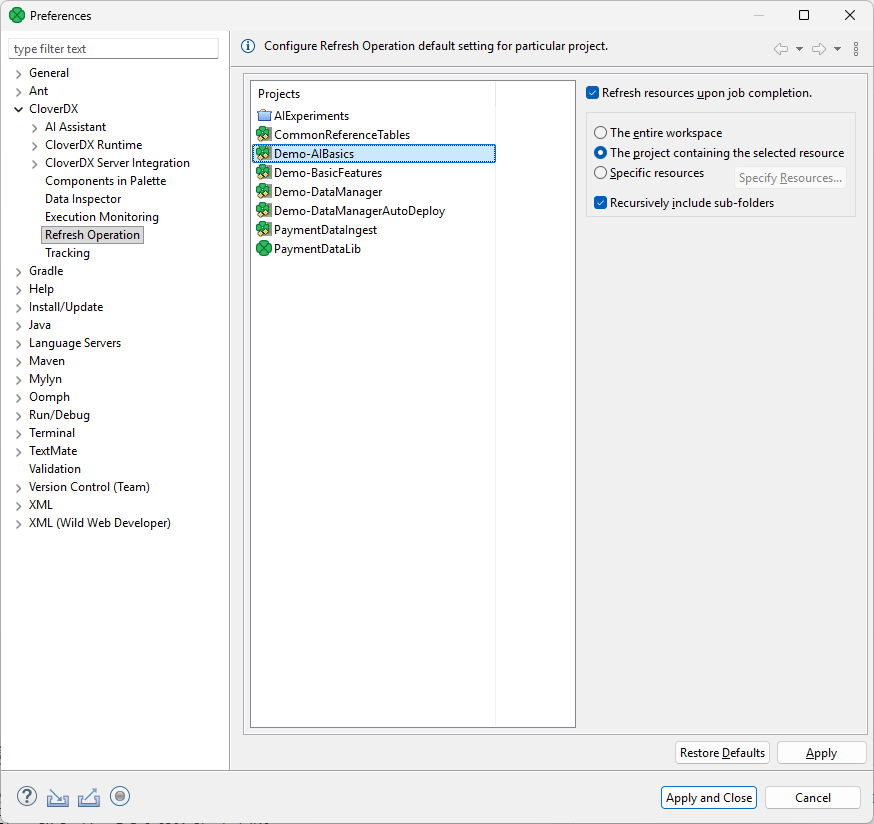

Figure 72. Refresh Operation

Choose the project in the middle part of the dialog and specify which resources should be updated.

The Refresh resources upon job completion checkbox enables or disables refreshing of resources.

Radio buttons on the right hand side let you choose between refreshing the entire workspace, the project containing the selected resource or specific resource.

The refreshing can be performed in the selected directories or recursively using the Recursively include sub-folders option.

Refreshing after graph run can be configured per particular graph, too. See Run configuration.

Java configuration

The JDK installed during CloverDX Designer installation is also used to compile and run your Java and CTL code in local projects. By default, the Designer is installed with the recommended Eclipse Temurin JDK version 21.

When running your jobs in a CloverDX Server environment, the jobs are run with the Java version configured in the Server environment. If your CloverDX Server runs on Eclipse Temurin JDK 21, there is no need to add a different JDK. If your Server environment runs on a different JDK (refer to our Compatibility Matrix here), the default Eclipse Temurin JDK version should in most cases work without an issue as well. However, if you want to ensure that you are developing your code with the same Java version as is configured on the server, you can add the desired JDK and globally change the Java used during runtime.

Make sure to add a JDK (Java Development Kit) package. JRE (Java Runtime Environment) packages are not supported.

If you want to switch to a different JDK, perform the steps below:

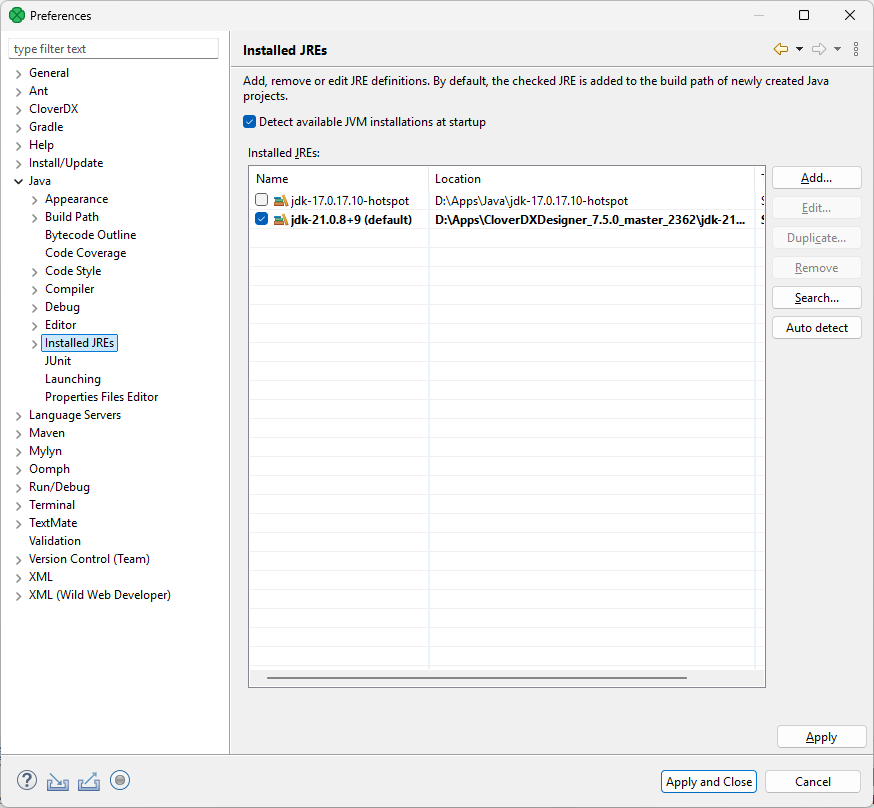

Open preference via Windows Preferences menu and then navigate to Java Installed JREs. By default, you will see the Java version selected during the Designer installation.

Figure 73. List of Java environments showing two Java versions – JDK 17 and JDK 21. The JDK 21 is the default one bundled with CloverDX Designer 7.5.
To add a new Java installation click on Add, select Standard VM, and hit Next.

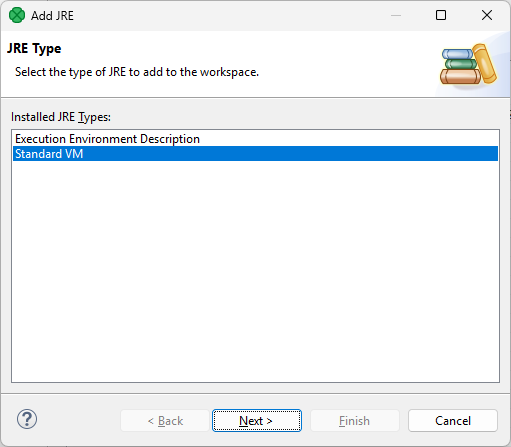

Figure 74. Adding new JRE via Add JRE wizard.
Select the directory of the desired JDK and click on Finish.

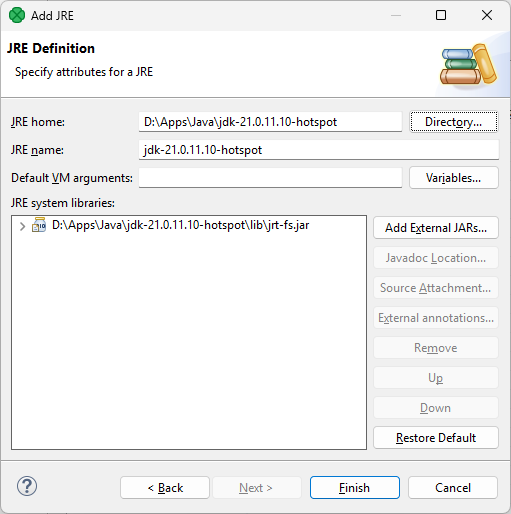

Figure 75. Configuring the new JDK – select JDK via the Directory button. All the other settings should be auto-detected for you.
To start using the JDK, select the checkbox next to it. After saving this change, the JDK is automatically added to the build path of your projects.

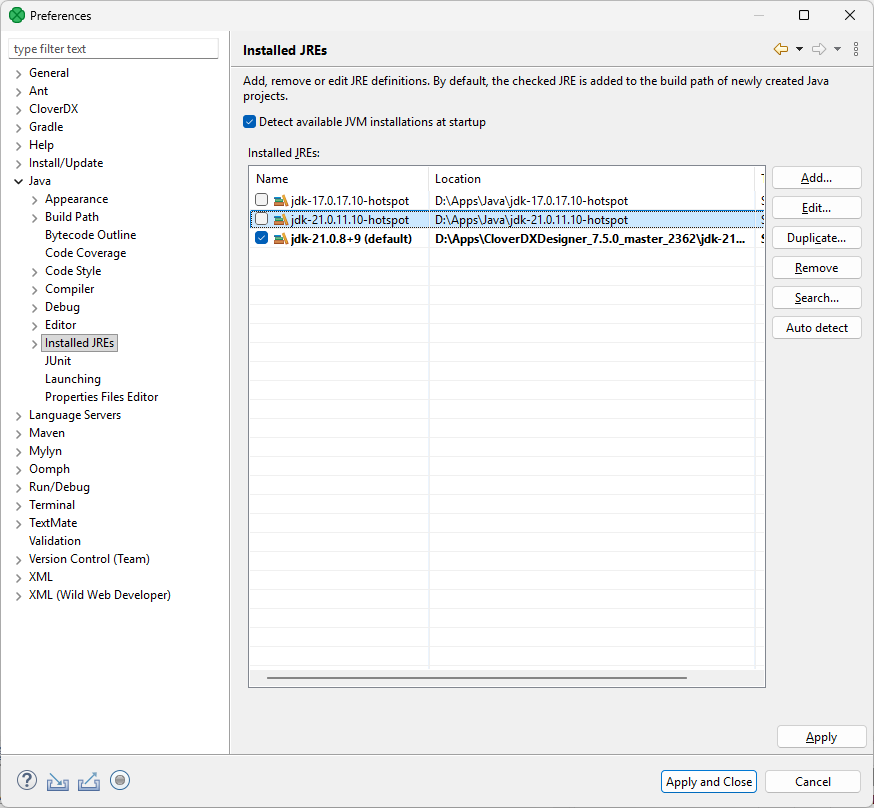

Figure 76. New JDK added to the list (the JDK 21 – second item from the top).

Configuring two-way authentication

To strengthen the security of your CloverDX environment, you can configure two-way authentication between the CloverDX Server and individual Designer instances. This setup involves creating a client keystore with a key pair and server truststore to encrypt data transmission and authenticate communication between the Server and Designers.

Configuration overview

The configuration steps in this section build on the Securing Server with HTTPS chapter and assume that CloverDX Server already has a configured keystore with a keypair and HTTPS enabled. Below is a summary of the steps required to configure secure communication between CloverDX Designer and CloverDX Server using mutual authentication.

Create a client keystore with a key pair for CloverDX Designer.
If you want to use a certificate signed by a certificate authority (CA):
1. Create a certificate signing request (CSR).
2. Send it to your CA for signing.
3. Import the signed certificate back into its keystore.

For detailed steps and explanations on keystore, key pair, CSR generation, and certificate import (points 1-2 above), follow the steps in the Securing Server with HTTPS section.

Export the self-signed certificate from the client keystore in .cer format, or, preferably, obtain the Certificate Authority’s certificate.
Create a server truststore and import the client certificate into it.
Configure your Server’s application server to use the truststore.
Configure Designer to use the client keystore.

This guide describes two options for certificate and keystore/truststore management:

Using the keytool command (CLI): This method requires familiarity with command-line tools. This method offers granular control over the certificate creation process, empowering you to tailor it to your needs.
Using KeyStore Explorer (GUI): This intuitive graphical interface simplifies the complexities of certificate management, allowing you to quickly and easily generate keystores and key pairs.

Tomcat supports three truststore types: JKS, PKCS11, and PKCS12. Although JKS is the recommended and thoroughly tested option, other keystore types may also work. However, we cannot ensure full compatibility or functionality of all Tomcat features and configurations with non-standard keystore types. To maintain optimal compatibility and security, it is best to use JKS.
The behavior of the keytool command might differ between JDK providers and versions. This guide is based on the keytool utility in Eclipse Temurin JDK 17.

Certificate export

Export your client self-signed certificate in the .cer format.

If your key pair is signed by a certificate authority (CA), the industry standard is to use the CA’s certificate instead of exporting the signed certificate. This ensures that all certificates issued by the CA are automatically trusted. Contact your IT team to obtain your certificate authority’s certificate.

Keytool command

KeyStore Explorer

Keytool command

Run the following command on the client keystore to export your self-signed certificate. Modify the values accordingly. See Keytool command breakdown for the command options explanation.

keytool -exportcert -alias cloverdxdesigner -file cloverdxdesigner.crt -keystore clientKS.jks -storepass p4ssw0rd

Keytool command breakdown

Alias: the key alias in the keystore.
File: the output file for the exported certificate.
Keystore: the keystore file from which to export the certificate.
Storepass: keystore password.

KeyStore Explorer

Open your keystore, right-click your key pair, and navigate to Export > Export Certificate Chain.

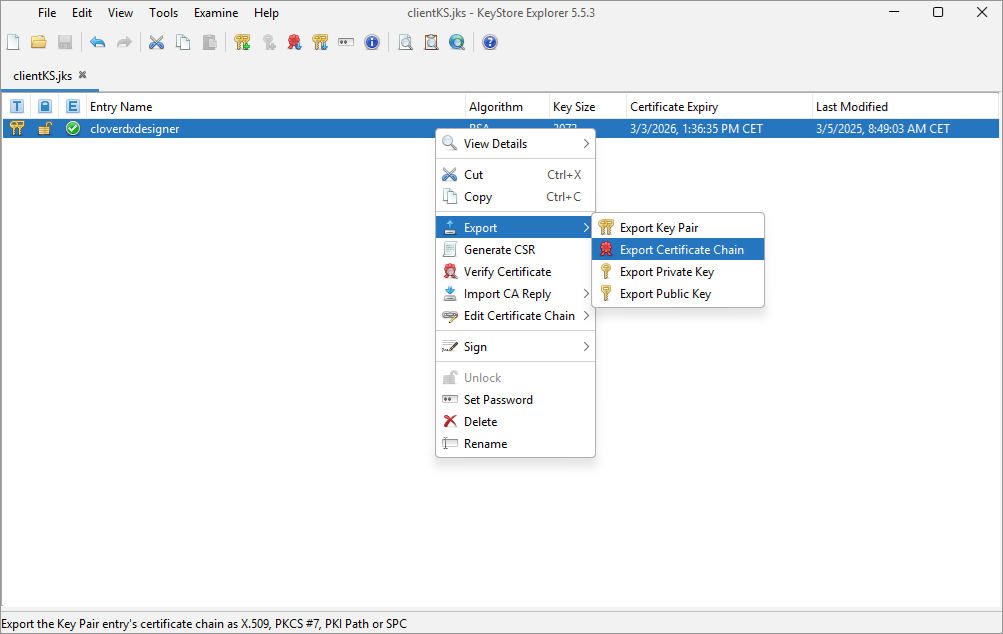

Figure 77. Export certificate chain

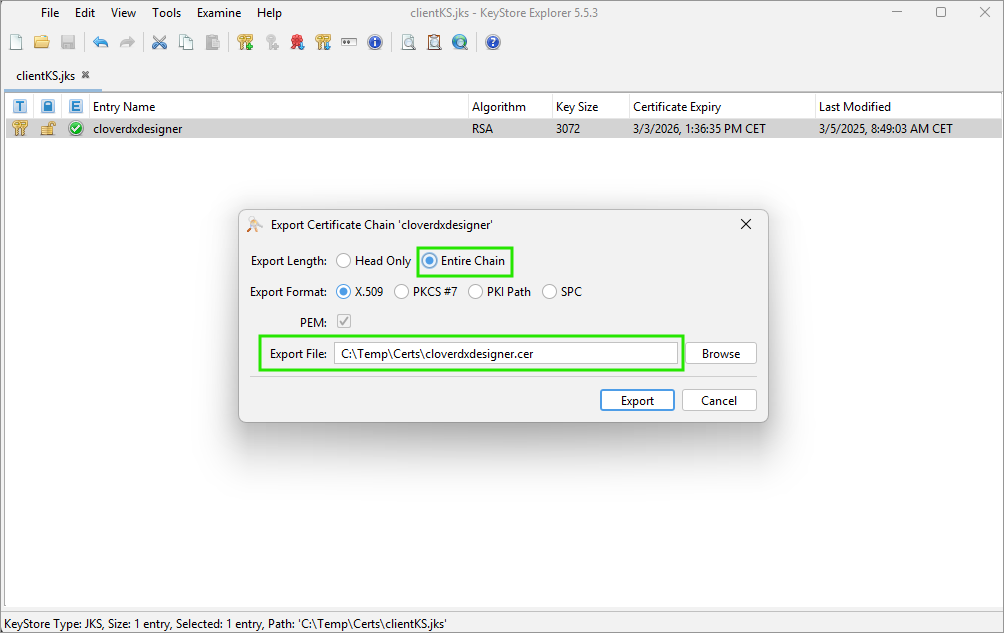

Switch to the Entire Chain option and select an export path.

Figure 78. Export certificate chain

The certificate is exported to the specified path.

Figure 79. Successful export

Create server truststore and import client certificate

Keytool command

KeyStore Explorer

Keytool command

Run the following command to create a server truststore and import your certificate (self-signed certificate or certificate of the certificate authority used to sign your key pair) into it. Modify the values accordingly. See Keytool command breakdown for the command options explanation.

Create truststore for CloverDX Server and import client certificate into it

keytool -importcert -alias cloverdxdesigner -file cloverdxdesigner.crt -keystore serverTS.jks -storetype jks -storepass p4ssw0rd

Keytool command breakdown

Importcert: imports a certificate into the specified keystore.
Alias: specifies the alias for the certificate.
File: specifies the file containing the certificate to import (cloverdxdesigner.crt).
Keystore: specifies the keystore file to store the certificate.
Storetype: specifies the keystore type (jks).
Storepass: sets password for the keystore.

KeyStore Explorer

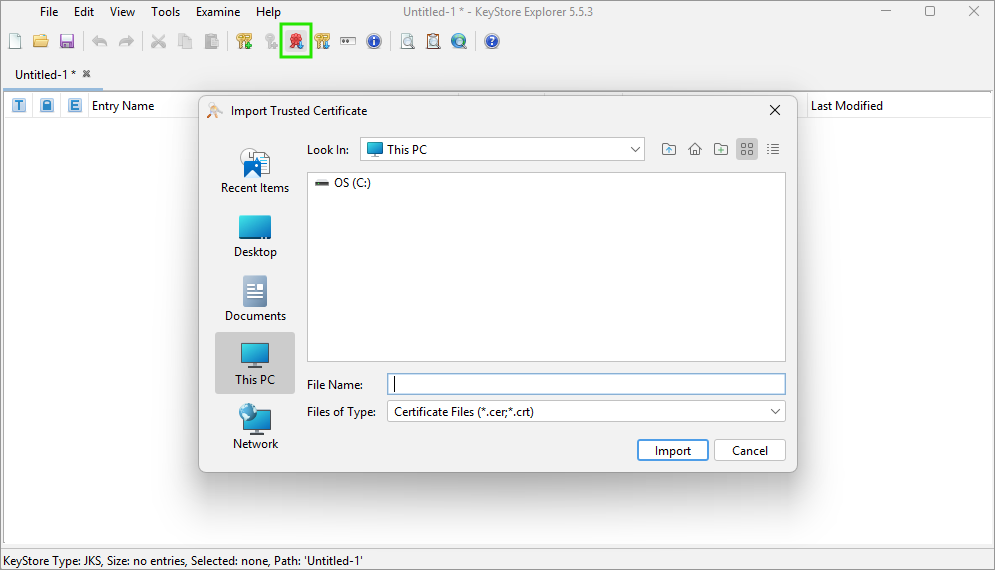

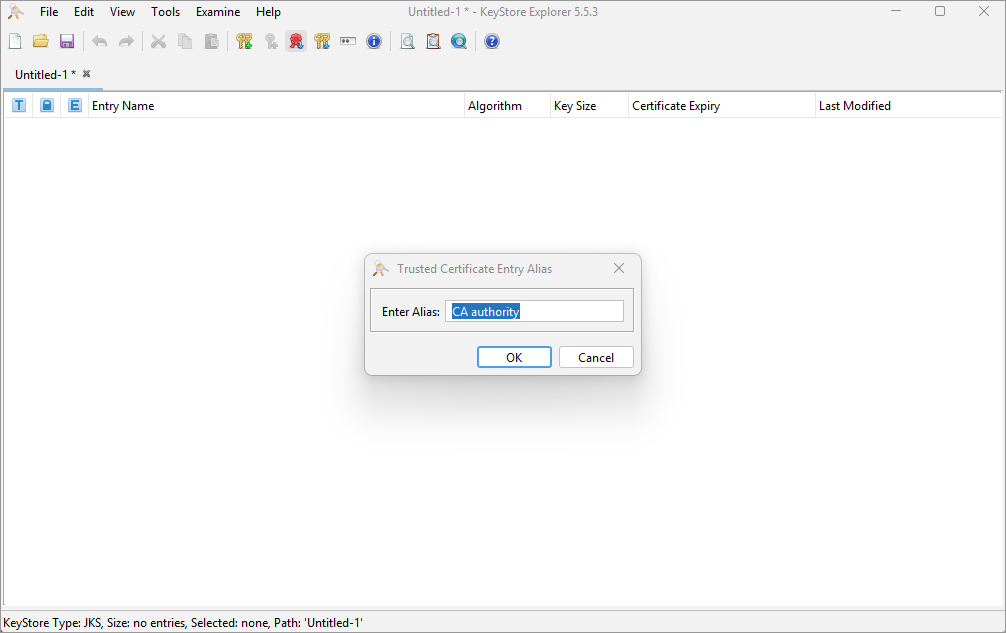

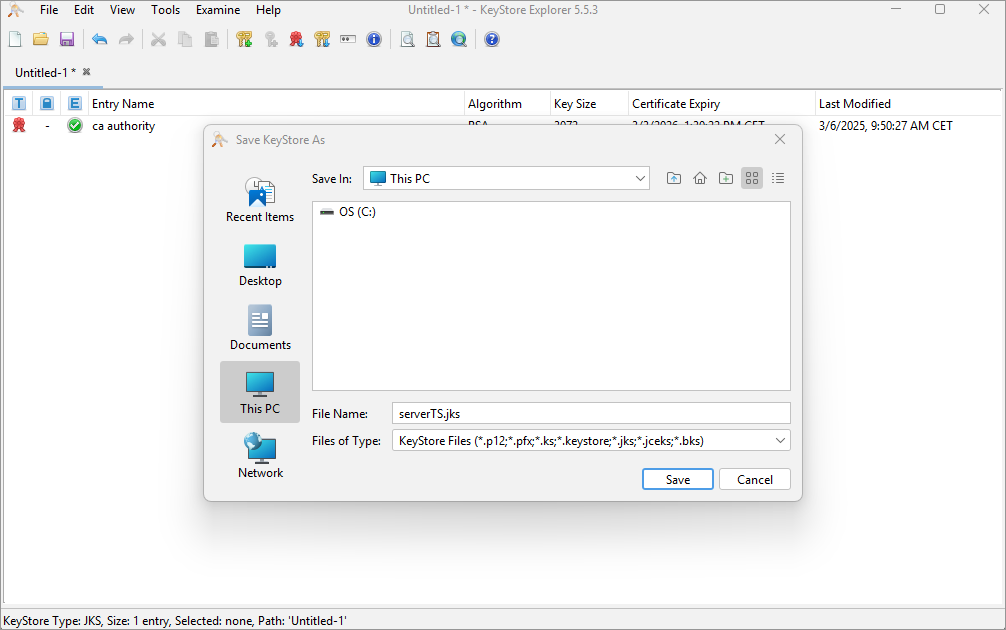

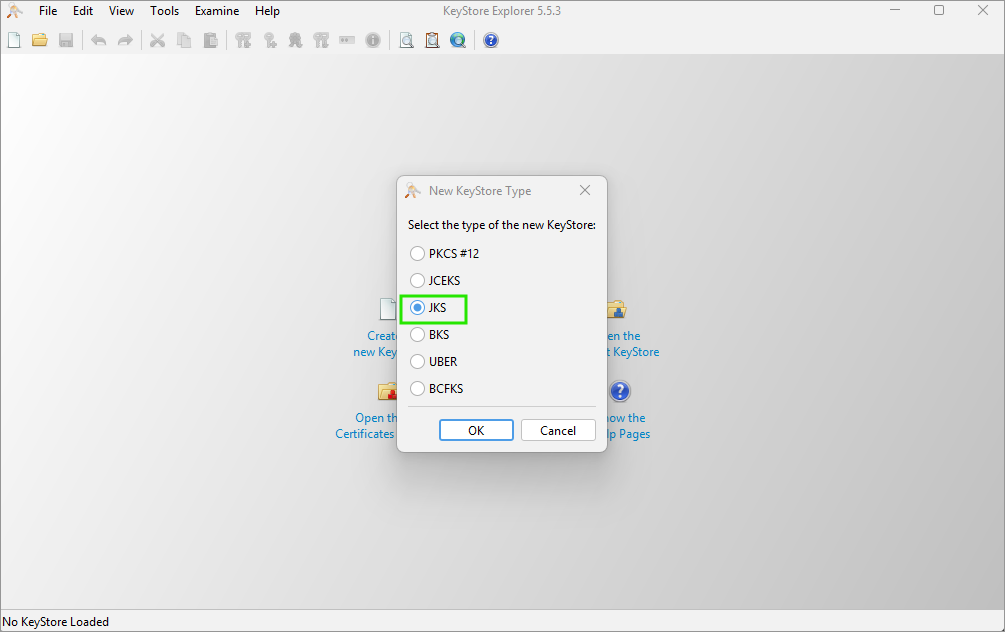

Open the KeyStore Explorer and click on the New button or use the Ctrl+N shortcut. You will be prompted to select the keystore type. Select the JKS (Java Key Store) type.

Figure 80. Create new truststore

Use the Import Trusted Certificate button (or press Ctrl+T) and select the .crt file to import.

Figure 81. Select the certificate to import

Leave the pre-filled alias or modify it as needed. The alias can always be changed by right-clicking on the key pair and selecting the Rename option.

Figure 82. Enter an alias name for the certificate

Figure 83. Successful import

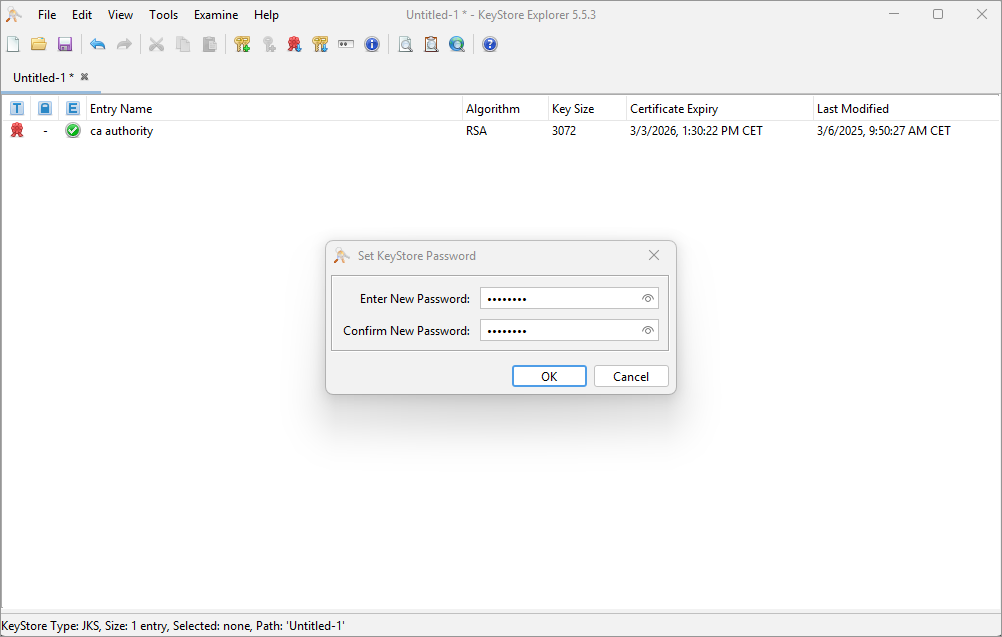

Now save the truststore (click on Save or press Ctrl+S). You will be prompted to enter and confirm a password.

Figure 84. Creating truststore password

Save the truststore as a keystore file.

Figure 85. Saving the .jks file

Server configuration

To configure your application server to use the server truststore, perform the following steps:

Move the generated truststore .jks file to the <TOMCAT_INSTALL_DIR>/conf directory.
Edit the server.xml file and add the trustoreFile and truststorePass properties to the SSL connector.

<Listener
    className="org.apache.catalina.core.AprLifecycleListener"
    SSLEngine="off"
/>
<Connector
    protocol="org.apache.coyote.http11.Http11NioProtocol"
    port="8443"
    maxThreads="200"
    maxParameterCount="1000"
    SSLEnabled="true">
    <SSLHostConfig
        certificateVerification="required"
        truststoreFile="pathToTomcatDirectory/conf/serverTS.jks"
        truststorePassword="p4ssw0rd">
        <Certificate
            certificateKeystoreFile="pathToTomcatDirectory/conf/serverKS.jks"
            certificateKeystorePassword="p4ssw0rd"
            type="RSA"
         />
    </SSLHostConfig>
</Connector>

Important notes

truststoreFile: Use forward slashes (/) in the keystoreFile path, both on Linux and Windows.
truststorePass: Replace p4ssw0rd with your actual keystore password.

After making these changes, restart your CloverDX Server.

Move the keystore .jks file to a directory accessible by CloverDX Designer. Locate the CloverDXDesigner.ini file in the Designer install directory. Edit it and add the following configuration:

-Djavax.net.ssl.keyStore=locationOfClientFiles/clientKS.jks
-Djavax.net.ssl.keyStorePassword=p4ssw0rd

Important notes

keyStore: Use forward slashes (/) in the keystoreFile path.
keyStorePassword: Replace p4ssw0rd with your actual keystore password.

After making these changes, restart your CloverDX Designer.

Engine configuration

CloverDX internal settings (defaults) are stored in the defaultProperties file located in the CloverDX engine. This source file contains various parameters that are loaded at run-time and used during transformation execution. We do not recommend changing values in this file.

In Designer, the path to the file is plugins/com.cloveretl.gui/lib/lib/cloveretl.engine.jar. In Server Core, the path to the file is WEB-INF/lib/cloveretl.engine.jar.

If you need to change the default setting, create a local file with only those properties you need to override and place the file in the project directory. To instruct CloverDX to retrieve the properties from this local file, go to Window Preferences CloverDX CloverDX Runtime and either define the path to the file in the CloverDX Engine Properties field or put the following parameter in the VM parameters field:

-Dclover.engine.config.file=/full/path/to/file.properties

Note: engine properties must be set for each workspace individually.

Content of defaultProperties file

Here we present some of the properties and their values as they are presented in the defaultProperties file:

Record.RECORD_LIMIT_SIZE = 268435456

Limits the maximum size of a record. Theoretically, the limit can be set very high, but you should keep it as low as possible for an easier error detection. For more details on memory demands, see Edge memory allocation.
Record.RECORD_INITIAL_SIZE = 65536

Sets the initial amount of memory allocated to each record. The memory can grow dynamically up to Record.RECORD_LIMIT_SIZE, depending on how memory-greedy an edge is. See Edge memory allocation.
Record.FIELD_LIMIT_SIZE = 268435456

Limits the maximum size of one field within a record. For more details on memory demands, see Edge memory allocation.
Record.FIELD_INITIAL_SIZE = 65536

Sets the initial amount of memory allocated to each field within a record. The memory can grow dynamically up to Record.FIELD_LIMIT_SIZE, depending on how memory-greedy an edge is. See Edge memory allocation.
Record.DEFAULT_COMPRESSION_LEVEL = 5

This sets the compression level for compressed data fields (cbyte).
DEFAULT_INTERNAL_IO_BUFFER_SIZE = 32768

Determines the internal buffer size the components allocate for I/O operations. Increasing this value affects performance negligibly.
USE_DIRECT_MEMORY = false

The CloverDX engine can use direct memory for data records manipulation. For example, underlying memory of CloverBuffer (container for serialized data records) uses direct memory (if the usage is enabled). This attribute is by default false.

Using direct memory can slightly improve performance in some cases. However, direct memory is out of control of a Java Virtual Machine, as the direct memory is allocated outside of the Java heap space in direct memory. If OutOfMemory exception occurs and usage of direct memory is enabled, try to turn it off.

In CloverDX 4.9.0-M2, the default value was changed from true to false.
DEFAULT_DATE_FORMAT = yyyy-MM-dd
DEFAULT_TIME_FORMAT = HH:mm:ss
DEFAULT_DATETIME_FORMAT = yyyy-MM-dd HH:mm:ss
DEFAULT_REGEXP_TRUE_STRING = true|T|TRUE|YES|Y|t|1|yes|y
DEFAULT_REGEXP_FALSE_STRING = false|F|FALSE|NO|N|f|0|no|n
DataParser.DEFAULT_CHARSET_DECODER = UTF-8
DataFormatter.DEFAULT_CHARSET_ENCODER = UTF-8
Lookup.LOOKUP_INITIAL_CAPACITY = 512

The initial capacity of a lookup table when created without specifying the size.
DataFieldMetadata.DECIMAL_LENGTH = 12

Determines the default maximum precision of decimal data field metadata. Precision is the number of digits in a number, e.g. the number 123.45 has a precision of 5.
DataFieldMetadata.DECIMAL_SCALE = 2

Determines the default scale of decimal data field metadata. Scale is the number of digits to the right of the decimal point in a number, e.g. the number 123.45 has a scale of 2.
Record.MAX_RECORD_SIZE = 33554432

This is a deprecated property. Nowadays, you should use Record.RECORD_LIMIT_SIZE.

Limits the maximum size of a record. Theoretically, the limit is tens of MBs, but you should keep it as low as possible for easier error detection.

You can define locale that should be used as the default one.

The setting is the following:

# DEFAULT_LOCALE = en.US

By default, system locale is used by CloverDX. If you uncomment this row you can set the DEFAULT_LOCALE property to any locale supported by CloverDX, see the List of all locale.

Similarly, the default time zone can be overridden by uncommenting the following entry:

# DEFAULT_TIME_ZONE = 'java:America/Chicago';'joda:America/Chicago'

For more information about time zones, see the Time zone section.

Properties specific to Wrangler

CSVAnalyzer.LINES_TO_ANALYZE = 1000

Maximum number of lines read during metadata analysis of a CSV data file. This sets the data sample size Wrangler uses to detect columns and their data types for CSV sources.
CSVAnalyzer.BYTES_TO_ANALYZE = 524288

Maximum number of bytes read during metadata analysis of a CSV data file. This sets the data sample size Wrangler uses to detect columns and their data types for CSV sources.
CSVAnalyzer.MAJORITY_TYPE_GUESS_THRESHOLD = 90

The confidence needed for CSV data type detection of a column, in percent. With default setting, 90% or more values in a column must contain integer number for Wrangler to detect the column as integer. If only 89% of values are integers Wrangler will attempt to generalize the data type to a larger data type such as decimal or string.
XLSAnalyzer.LINES_TO_ANALYZE = 1000

Maximum number of lines read during metadata analysis of an Excel file. This sets the data sample size Wrangler uses to detect columns and their data types for Excel sources.
Wrangler.MAX_NUMBER_OF_COLUMNS = 1000

Maximum number of columns allowed in Wrangler data set. Data sets with more columns are rejected and cannot be worked with.
Wrangler.DEFAULT_SORT_LOCALE = en.US

Locale used for sorting wrangler data sets. If not specified DEFAULT_LOCALE is used.

Compatibility

In 4.4.0-M2, the default encoding was changed from ISO-8859-1 to UTF-8. Therefore, DataParser.DEFAULT_CHARSET_DECODER and DataFormatter.DEFAULT_CHARSET_ENCODER were set to UTF-8.
