OAuth2 authentication

> > > >

With OAuth2, a client reaches the CloverDX Server APIs with an access token instead of a CloverDX password. It is configured in Configuration OAuth2, which takes the Setup and OAuth2 permission. Four parts of the Server can be covered: the Server REST API, the Data Manager REST API, Data services and the MCP Server. Each is covered on its own – authentication via HTTP Basic is disabled for the parts an enabled profile names among its Server scopes, and stays in place for the rest. Configuring OAuth2 for the MCP scope alone therefore changes nothing about how the other three are reached.

What a client authorizes against is an OAuth2 profile: one client application at one Identity provider, together with the scopes it covers and the user groups whose members may use it. A deployment can hold as many profiles as it needs, and more than one profile may carry the same scope.

OAuth2 decides authentication only. Authorization – access levels to sandbox content and privileges for operations – is still handled by the CloverDX security module. With an Identity provider, the user’s CloverDX Server record has to be linked to their account there: the Server reads the account identity from the token it verifies and looks the CloverDX user up by it. With the Built-in provider there is no external account to link, so this step falls away.

The page lists every profile with its scopes and user groups. The toggle in the Enabled column turns a profile on and off without deleting it, New OAuth2 profile creates one, and the menu at the end of each row duplicates or deletes it. Click a profile to open its settings.

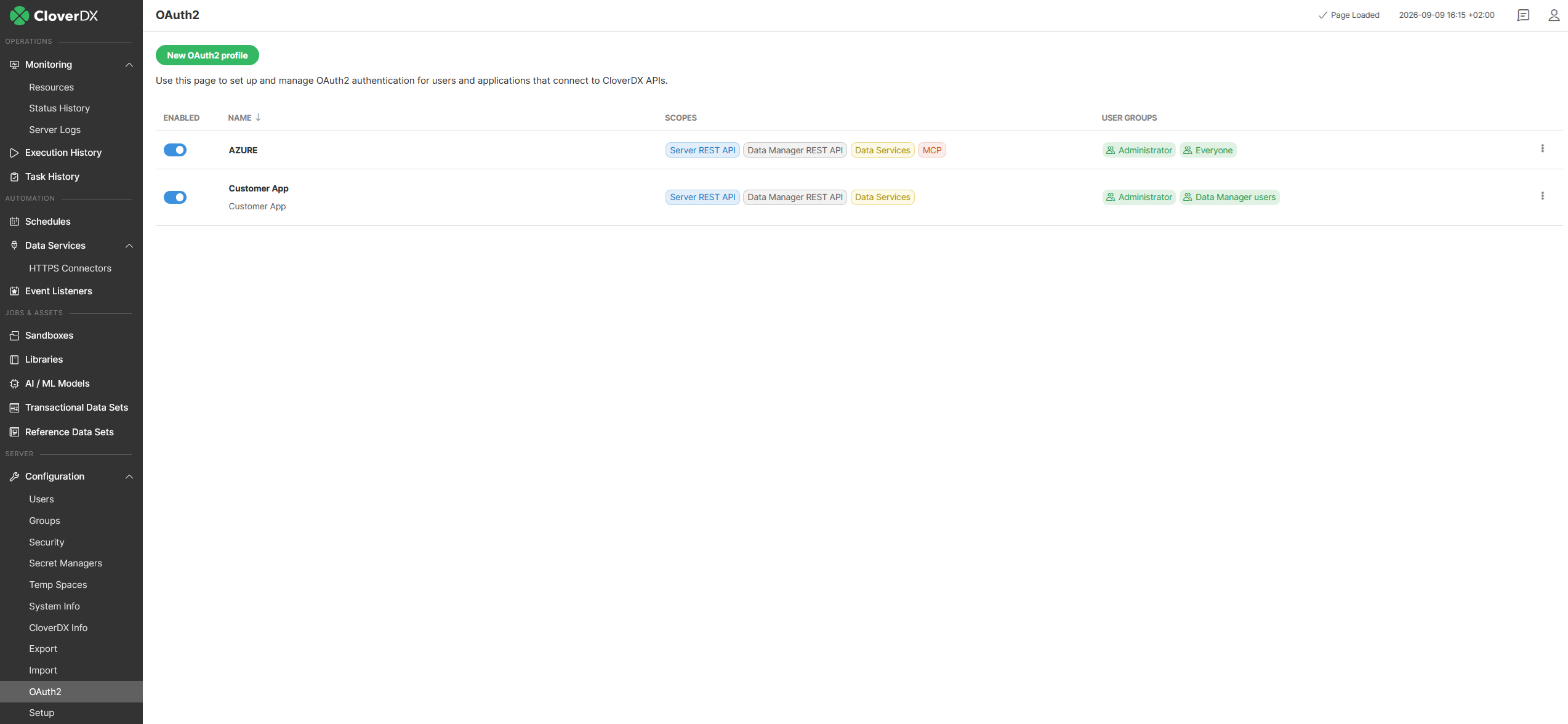

Figure 95. The OAuth2 module

OAuth2 profile setup

Attribute Description Possible values

Attribute	Description	Possible values
Enabled	Enables/disables OAuth2 profile usage.	`true` (default) \| `false`
Name	Unique name of the OAuth2 profile. This name is shown in the list of available profiles in OAuth2 Authentication.
Description	Optional description of the OAuth2 profile.
Scopes	Scopes define the parts of the REST API that can be accessed by a user authorized against the OAuth2 profile.	Server REST API, Data Manager REST API, Data Services, MCP
User groups	List of user groups whose members have access to the OAuth2 profile.
Provider	Your identity provider. You have to select from a list of supported providers.	Azure (Microsoft), Google, Built-in
Client ID	Application/Client ID as defined by the provider.
Client secret	Application/Client secret as defined by the provider. Its optional unless you need to link user accounts by completing the authorization flow.
Tenant ID	Tenant ID is available only for Azure (Microsoft) defined applications.
Authorization endpoint	Authorization URL needed when you link user accounts by completing the authorization flow. You don’t need to change its default value unless there is a specific network setup preventing usage of default hostname etc.
Token endpoint	Token URL needed when you link user accounts by completing the authorization flow. You don’t need to change its default value unless there is a specific network setup preventing usage of default hostname etc.
Use PKCE	Use Proof Key for Code Exchange (PKCE) with you provider’s application. Required on a profile that carries the MCP scope – without it, MCP authorization requests are refused.	`false` (default) \| `true`
Redirect endpoint	Redirect URL needed when you link user accounts by completing the authorization flow. You don’t need to change its default value unless there is a specific network setup preventing usage of your server hostname from outside etc. This URL has to be registered with you provider’s application.

Enabled

Enables/disables OAuth2 profile usage.

true (default) | false

Name

Unique name of the OAuth2 profile. This name is shown in the list of available profiles in OAuth2 Authentication.

Description

Optional description of the OAuth2 profile.

Scopes

Scopes define the parts of the REST API that can be accessed by a user authorized against the OAuth2 profile.

Server REST API, Data Manager REST API, Data Services, MCP

User groups

List of user groups whose members have access to the OAuth2 profile.

Provider

Your identity provider. You have to select from a list of supported providers.

Azure (Microsoft), Google, Built-in

Client ID

Application/Client ID as defined by the provider.

Client secret

Application/Client secret as defined by the provider. Its optional unless you need to link user accounts by completing the authorization flow.

Tenant ID

Tenant ID is available only for Azure (Microsoft) defined applications.

Authorization endpoint

Authorization URL needed when you link user accounts by completing the authorization flow. You don’t need to change its default value unless there is a specific network setup preventing usage of default hostname etc.

Token endpoint

Token URL needed when you link user accounts by completing the authorization flow. You don’t need to change its default value unless there is a specific network setup preventing usage of default hostname etc.

Use PKCE

Use Proof Key for Code Exchange (PKCE) with you provider’s application. Required on a profile that carries the MCP scope – without it, MCP authorization requests are refused.

false (default) | true

Redirect endpoint

Redirect URL needed when you link user accounts by completing the authorization flow. You don’t need to change its default value unless there is a specific network setup preventing usage of your server hostname from outside etc. This URL has to be registered with you provider’s application.

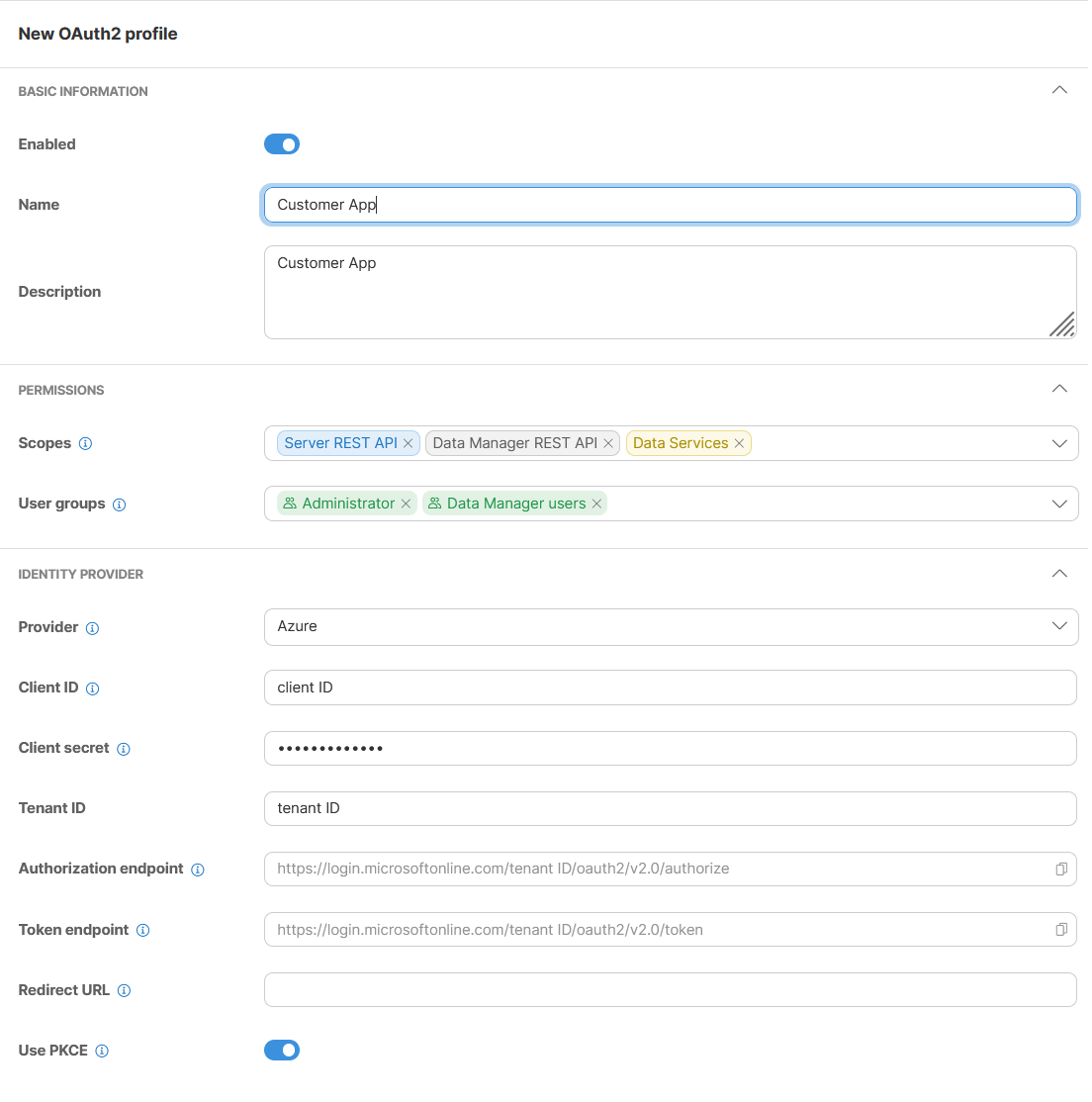

Figure 96. OAuth2 profile

Server scopes

Server scope is a part of the CloverDX Server REST API which can be accessed by an OAuth2 profile. There are four available scopes.

Server REST API - see 'https://[server-hostname]:[server-port]/clover/api/rest/v1/docs.html'

Data Manager REST API - see 'https://[server-hostname]:[server-port]/clover/api/rest/data-manager/v1/docs.html'

Data Services - all published Data Services

MCP - CloverDX MCP Server

Only one OAuth2 profile can have the MCP scope assigned.

Providers

A profile’s Provider is one of three: Azure (Microsoft), Google, or Built-in, which is the CloverDX Server itself.

With an identity provider, register CloverDX Server as a client application there first; the profile is then filled in from that registration.

Identity provider can have specific requirements when registering OAuth2 client application with them.

If you want to link user accounts by completing authorization flow you have to register Redirect URL with your application. The CloverDX server redirect URL is 'https://[server-hostname]:[server-port]/clover/oauth2'.

Microsoft Azure

When registering application used for authentication of external APIs you have to create and connect 'API ID' with your application. For CloverDX server this 'API ID' has to contain 'Application (client) ID'. By default it should be 'api://[Application (client) ID]'.

You have to also create at least one 'scope' for you provider’s application. The CloverDX server is using only default scope so the name of the scope is not important. The value should be like this 'api://[Application (client) ID]/SomeName'.

Google

When registering application you have to assign 'scope' with name 'openid' to your provider’s application.

Built-in

The Built-in provider is a special case of an OAuth2 profile. It can be used only with the MCP scope. There are no Identity provider parameters because this provider is the CloverDX Server itself.

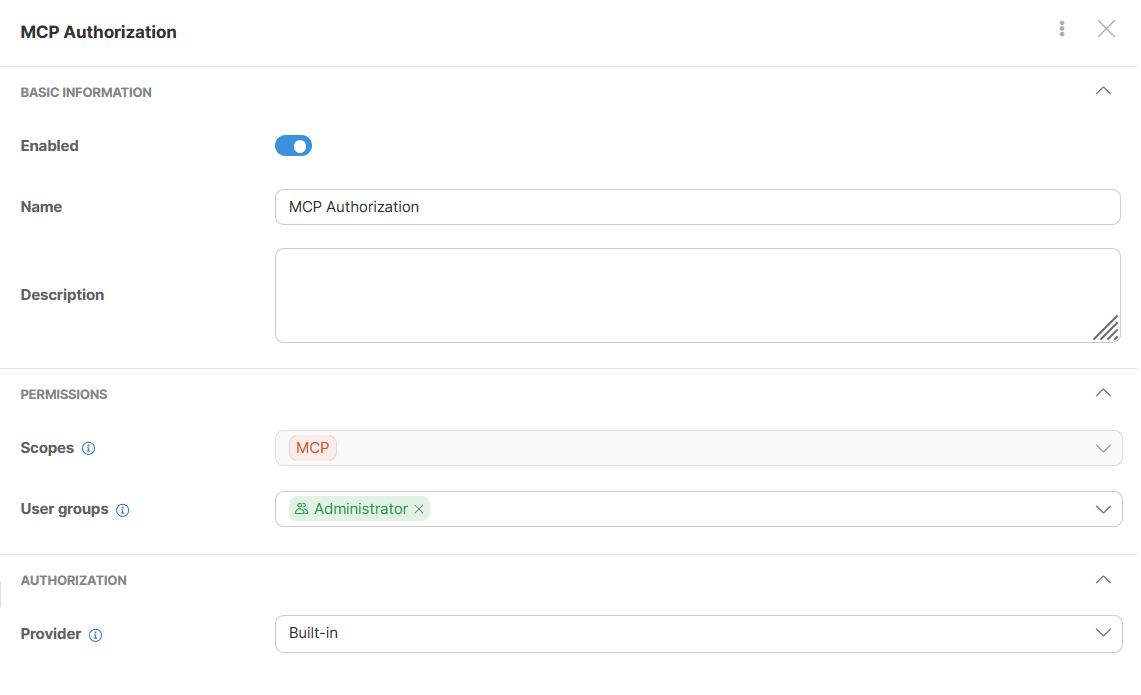

Figure 97. OAuth2 with built in provider

With this provider, CloverDX Server authorizes MCP clients on its own: nothing is registered at Entra or Google, no client secret is kept in the Server configuration, and no user account is linked by hand. The user signs in on a CloverDX page with their own credentials and approves the client there. Everything on the client side stays the same – see Authorizing MCP clients with the built-in provider.

Two limits apply to such a profile:

MCP only. A profile with this provider carries the MCP scope and nothing else, so the REST API, Data services and the Data Manager REST API still need an Identity provider profile.
Password security domains only. An account in the CloverDX domain or in an LDAP domain can complete the flow. An account in a SAML domain cannot, and is refused with the same message a wrong password gives.

Users are checked against the profile’s User groups, and every renewal of a client’s session re-checks the CloverDX account. A user who is disabled, deleted, or taken out of those groups loses access at the next renewal.

Linking user account with OAuth2 provider’s account

The section OAuth2 Authentication is available only if OAuth2 authentication is configured on server. At least one OAuth2 profile has to be enabled. A profile with the Built-in provider is not offered here – it has no external identity to link an account to.

Before user can use OAuth2 authentication its CloverDX user account has to be linked with Identity provider user account ID. This can be done by completing standard authorization flow or by using already existing acces token.

Authorization profile

There can be multiple OAuth2 profiles configured. Select which profile the user should be authorized against. The important limitation here is that, for each OAuth2 profile, each Identity provider user account ID can be used only once.

Authorization request

By clicking on Generate request server with create standard authorization URL. Administrator may use this URL directly or send it to particular user via email or othe communication tool. When used the providers loggin and accept screen is displayed in browser. By completing this flow the access token is send to server which allows server to obtain user provider’s account ID.

Access token

If your administrator already has a valid access token it can be paste directly to server UI. This token is validated by server which allows server to obtain user provider’s account ID.

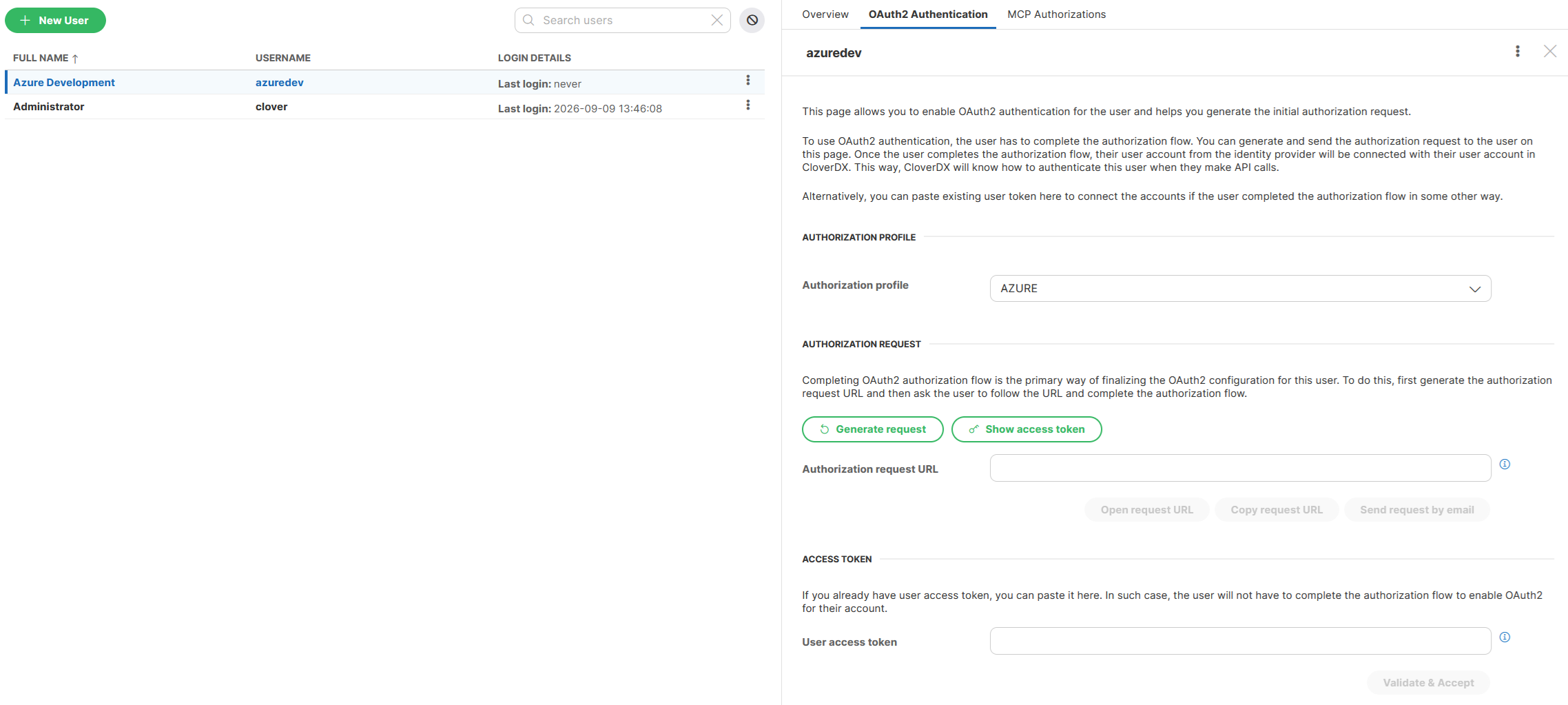

Figure 98. Linking user account
